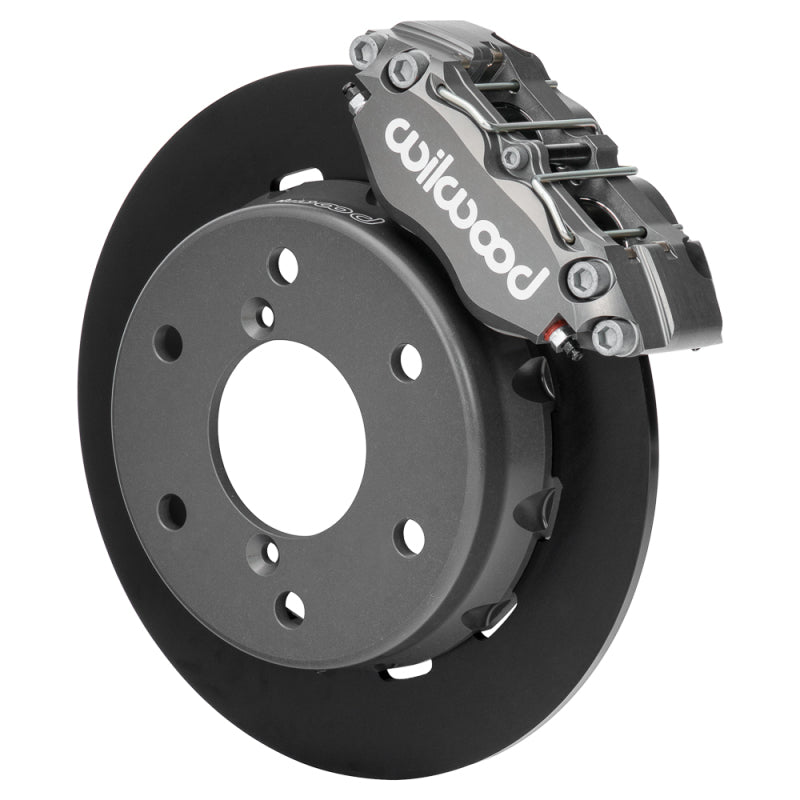

Wilwood NDPR Front Race Brake Kit for 2024 Can-Am Maverick R
Upgrade the front braking system of your 2024 Can-Am Maverick R with the Wilwood 140-18028 NDPR Front UTV Race Brake Kit. Designed for high-powered side-by-side racing applications, this system combines forged four-piston NDPR calipers, larger dynamically mounted steel rotors, and high-friction BP-28 brake pads to improve braking force, pedal feel, heat management, and control over rough terrain.
Wilwood’s forged-aluminum NDPR calipers use four stainless-steel pistons and a radial-mount design. The rigid caliper construction helps reduce deflection and promotes more uniform pad engagement, providing improved response and consistent braking under demanding off-road race conditions.
The 11.60-inch steel rotors are larger and thicker than the original equipment rotors. Their dynamic lug-drive mounting system helps reduce thermal stress and limit piston knockback caused by rough terrain, while the BP-28 brake pad compound provides the high friction needed for competitive UTV use.
Product Features

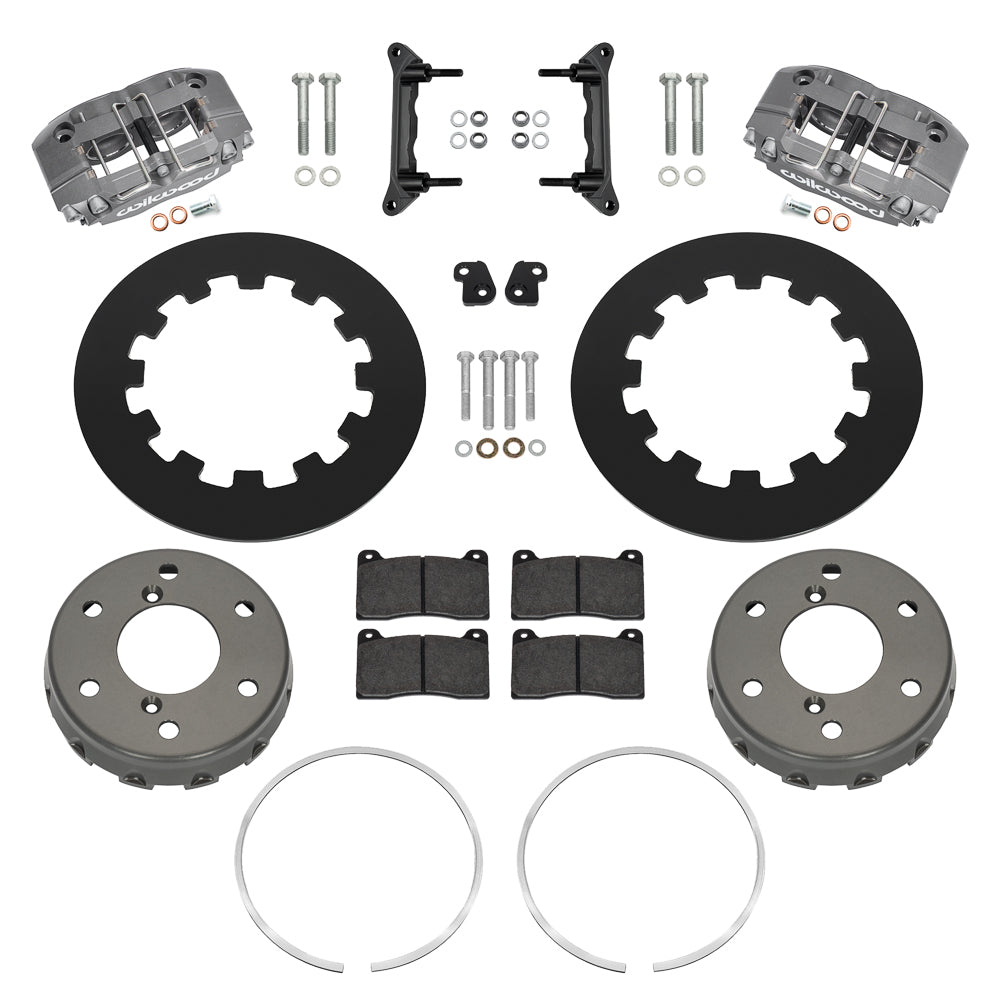

- Wilwood NDPR front UTV race brake kit
- Designed for the 2024 Can-Am Maverick R platform
- Forged-aluminum four-piston front calipers
- Type III anodized caliper finish
- Radial-mount caliper design
- Stainless-steel pistons
- 11.60-inch dynamically mounted steel rotors
- Plain-face rotor design
- Black electro-coated rotor finish
- High-friction Wilwood BP-28 brake pads
- Increased braking force and brake torque
- Improved pedal feel and pad engagement
- Dynamic rotor mounting helps reduce thermal stress
- Helps minimize piston knockback over rough terrain
- Designed for factory disc spindles
- Front axle brake kit
- Manufacturer part number 140-18028
Vehicle Fitment
Fits the following 2024 Can-Am models:
- Can-Am Maverick R
- Can-Am Maverick R X
- Can-Am Maverick R X RS
- Can-Am Maverick R X RS Smart-Shox
This kit is designed for vehicles using the factory disc spindle. Wheel and spindle compatibility should be verified before ordering.
Caliper Specifications
- Caliper type: Wilwood NDPR
- Caliper quantity: Two
- Piston count: Four pistons per caliper
- Piston material: Stainless steel
- Piston bore: 1.62 inches
- Piston area: 4.12 square inches
- Mounting type: Radial mount
- Finish: Type III anodized
- Brake-pad plate: 7812
- Brake-pad area: 6.36 square inches
- Brake-pad volume: 2.1 cubic inches
- Brake-pad compound: BP-28
Rotor Specifications
- Rotor type: Drilled steel rotor
- Rotor style: Plain face
- Rotor material: Steel
- Rotor finish: Black electro coat
- Rotor diameter: 11.60 inches
- Rotor thickness: 0.25 inch
- Rotor design: Solid
- Burnished: No
- Dynamically balanced: No
Rotor Hat Specifications
- Hat type: Big Brake Dynamic Lug Drive, short offset
- Hat material: Aluminum
- Hat finish: Type III anodized
- Hat offset: 1.330 inches
- Bolt pattern: 6 x 5.50 inches
Wheel Fitment Notice
Wilwood lists a minimum required wheel diameter of 15 inches. However, not every 15-inch wheel will clear the caliper and rotor assembly. The Wilwood wheel-clearance diagram should be checked before ordering or installation.
Product Specifications
- Manufacturer: Wilwood
- Product line: NDPR Front UTV Brake Kit
- Manufacturer part number: 140-18028
- Position: Front
- Application: UTV racing
- Spindle type: Factory disc spindle
- Rotor diameter: 11.60 inches
- Minimum listed wheel diameter: 15 inches
- Caliper finish: Type III anodized
- UPC: 889545122398
