The Wilwood Front Flexline Kit provides the brake hoses and fittings required to connect compatible Wilwood front calipers to the factory brake-line connection on select 1994–2004 Ford Mustang applications. This kit is the specified companion flexline kit for Wilwood Superlite 6R front brake kit 140-9107.
Each 18-inch hose uses stainless-steel braided construction to provide a durable, performance-oriented replacement for the original rubber brake hoses. The kit includes straight -3 female hose ends, 45-degree caliper fittings with 1/8-27 NPT threads, and the applicable chassis-side adapters.
Important: This is a brake-hose and fitting kit only. Calipers, rotors, pads, brackets, brake fluid, and the complete big brake kit are not included.
Features
- Application-specific front flexline kit for compatible Wilwood Mustang brake systems
- Stainless-steel braided brake hoses
- Two 18-inch front flexlines
- -3 hose size
- Straight -3 female hose ends
- 45-degree caliper fittings
- 1/8-27 NPT caliper-fitting thread
- Includes applicable chassis-side adapters
- Designed to replace incompatible factory rubber hoses when installing select Wilwood calipers
- Wilwood part number 220-6458
Fitment
- 1994–2004 Ford Mustang with compatible Wilwood Superlite 6R front brake kit
- Required flexline kit for Wilwood front brake kit 140-9107
- Also compatible with other Wilwood SN95 Mustang front brake kits that specifically identify 220-6458 as the required line kit
This flexline kit is not intended as a universal replacement for the factory Mustang brake hoses. Compatibility depends on the installed Wilwood caliper, caliper inlet thread, chassis brake-line fitting, and routing requirements.
Confirm that Wilwood part number 220-6458 is specified for the exact brake kit installed on the vehicle before ordering. Modified vehicles and brake systems assembled from individually selected components may require different hoses or fittings.
Specifications
- Application: SN95 Mustang front
- Hose construction: Stainless-steel braided flexline
- Hose quantity: 2
- Hose length: 18 inches each
- Hose size: -3
- Hose inlet: -3 female, straight
- Hose outlet: -3 female, straight
- Caliper fitting angle: 45 degrees
- Caliper fitting thread: 1/8-27 NPT
- Caliper fitting part number: 220-6412
- Chassis adapter sizes: -3 to 3/8-24 inverted flare or 7/16-24 inverted flare
- Chassis fitting part numbers: 220-13124 and 220-6457
- Kit weight: Approximately 0.80 pound
- Wilwood part number: 220-6458
- UPC: 889545050851
Recommended Use
Recommended when installing a compatible Wilwood front brake kit that cannot reuse the original Mustang rubber brake hoses. It is especially applicable to Wilwood Superlite 6R front brake kit 140-9107 for the five-lug 1994–2004 Mustang.

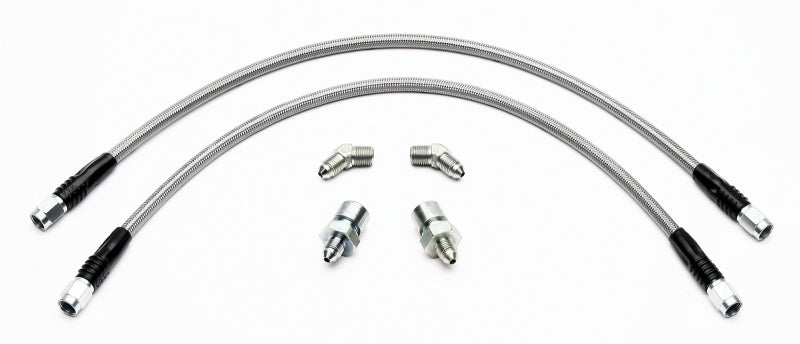

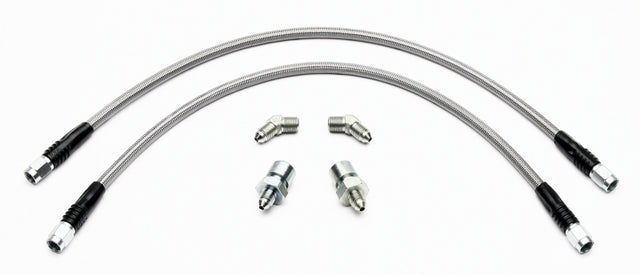

What’s Included
- 2 stainless-steel braided front brake flexlines
- 45-degree 1/8-27 NPT Wilwood caliper fittings
- Applicable chassis-side brake-line adapters
- Required connection fittings supplied with Wilwood flexline kit 220-6458
Calipers, brake pads, rotors, rotor hats, brake fluid, mounting brackets, chassis brake lines, and the complete Wilwood brake kit are not included.
Installation
Brake-hose installation should be performed by someone experienced with hydraulic brake systems. Confirm the thread type and sealing method of every fitting before assembly. NPT fittings and inverted-flare connections require different installation and sealing procedures.
Route each flexline so it cannot become stretched, twisted, kinked, pinched, or contacted by the wheel, tire, suspension, steering, or brake components. Check hose clearance throughout full steering movement and the complete range of suspension travel.
After installation, fill and bleed the brake system using fresh brake fluid compatible with the vehicle and installed brake components. Inspect every connection for leakage and verify that the brake pedal remains firm. Complete a controlled low-speed brake test before normal road or track use. Never operate the vehicle with untested brakes.
