Wilwood Superlite 6R Front Brake Kit – 1963–1987 Chevy C10 / GMC C15 – 12.19-Inch Drilled & Slotted Rotors – Black – 140-15940-D

Wilwood Forged Narrow Superlite 6R Front Brake Kit for 1963–1987 C10 and C15 Trucks

Upgrade the front braking system on a compatible 1963–1987 Chevrolet C10 or GMC C15 truck with the Wilwood 140-15940-D Forged Narrow Superlite 6R front brake kit.

This kit uses black powder-coated six-piston Superlite 6R calipers, 12.19-inch SRP drilled and slotted iron rotors, forged aluminum hubs, BP-10 brake pads, mounting brackets, bearings, seals, wheel studs, and installation hardware.

The kit is designed specifically for use with Wilwood one-piece iron ProSpindles, which are sold separately. It will not install on original factory spindles.

Product Features

• Wilwood Forged Narrow Superlite 6R front brake kit
• Six-piston radial-mount calipers
• Black powder-coated caliper finish
• 12.19 x 1.10-inch vented front rotors
• SRP drilled and slotted rotor design
• Black electro-coated rotor finish
• 32-vane dynamically balanced iron rotors
• Forged aluminum hubs
• Dual 5-lug bolt patterns
• 5 x 4.75-inch bolt pattern
• 5 x 5.00-inch bolt pattern
• 1/2-20 wheel studs
• BP-10 brake pads included
• Minimum recommended wheel diameter: 15 inches
• Wilwood part number 140-15940-D
• Front axle kit

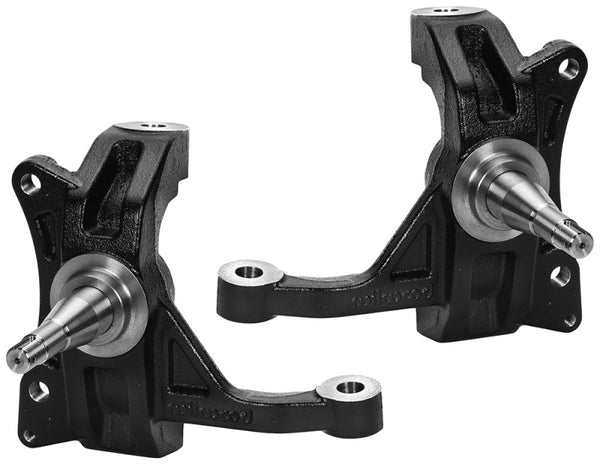

Required Wilwood ProSpindles

This brake kit requires one of the following Wilwood one-piece iron drop-spindle sets:

• 1963–1970 trucks: Wilwood ProSpindle part number 831-15931
• 1971–1987 trucks: Wilwood ProSpindle part number 831-15932

ProSpindles are sold separately and are not included with this brake kit.

This kit does not fit original factory spindles.

Caliper Specifications

• Caliper Type: Forged Narrow Superlite 6R
• Piston Count: 6
• Finish: Black powder coat
• Mounting Style: Radial mount
• Piston Material: Stainless steel
• Total Piston Area: 4.86 square inches
• Brake Pad Plate: Wilwood 7416
• Included Pad Compound: BP-10
• Brake Pad Area: 8.2 square inches

Rotor Specifications

• Rotor Diameter: 12.19 inches
• Rotor Thickness: 1.10 inches
• Rotor Type: Vented iron rotor
• Rotor Style: SRP drilled and slotted
• Finish: Black electro coat
• Vane Count: 32
• Directional Rotors: Yes
• Dynamically Balanced: Yes
• Left Rotor: Wilwood 160-15514-BK
• Right Rotor: Wilwood 160-15513-BK

Hub Specifications

• Hub Material: Forged aluminum
• Hub Mount Style: Hat mount
• Bolt Pattern 1: 5 x 4.75 inches
• Bolt Pattern 2: 5 x 5.00 inches
• Wheel Stud Size: 1/2-20
• Hub Offset: +0.41 inch

The hub offset changes wheel position relative to the original brake and spindle configuration. Wilwood lists the effective wheel-position change as approximately:

• 1963–1970: 0.41 inch outward per side
• 1971–1987: 0.06 inch inward per side

Verify wheel, fender, tire, and suspension clearance before installation.

Wheel Clearance Notice

Wilwood lists a minimum recommended wheel diameter of 15 inches. However, wheel diameter alone does not guarantee caliper clearance.

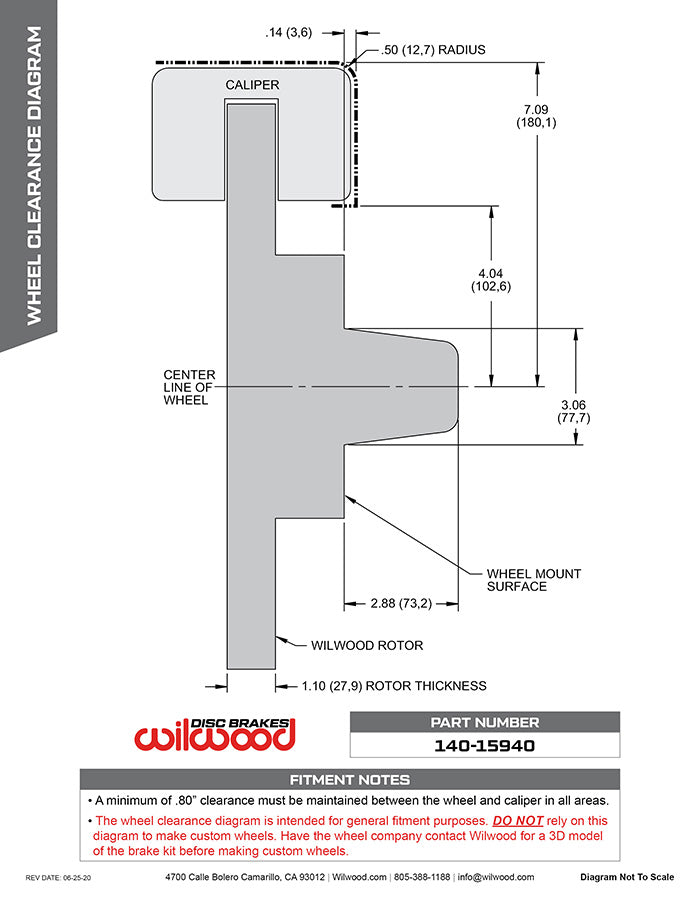

Use Wilwood’s wheel-clearance diagram to verify:

• Caliper-to-spoke clearance
• Caliper-to-barrel clearance
• Wheel-mounting surface position
• Hub offset
• Tire-to-fender clearance

Wilwood requires a minimum of approximately 0.080 inch of wheel-to-caliper clearance in all areas.

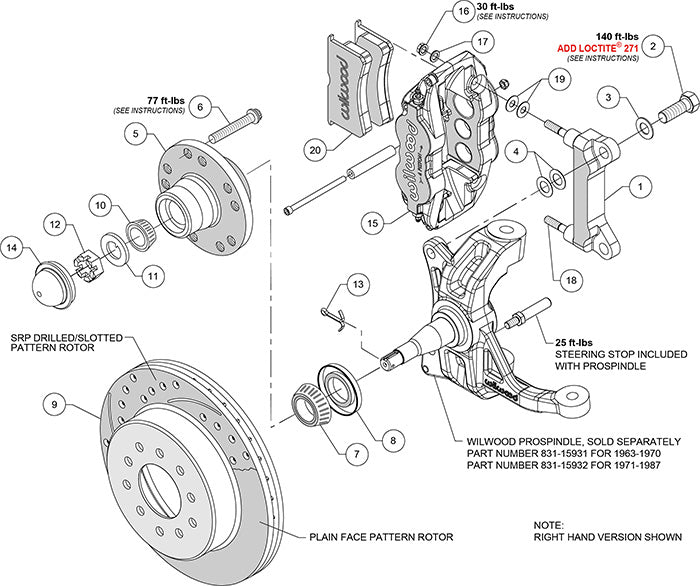

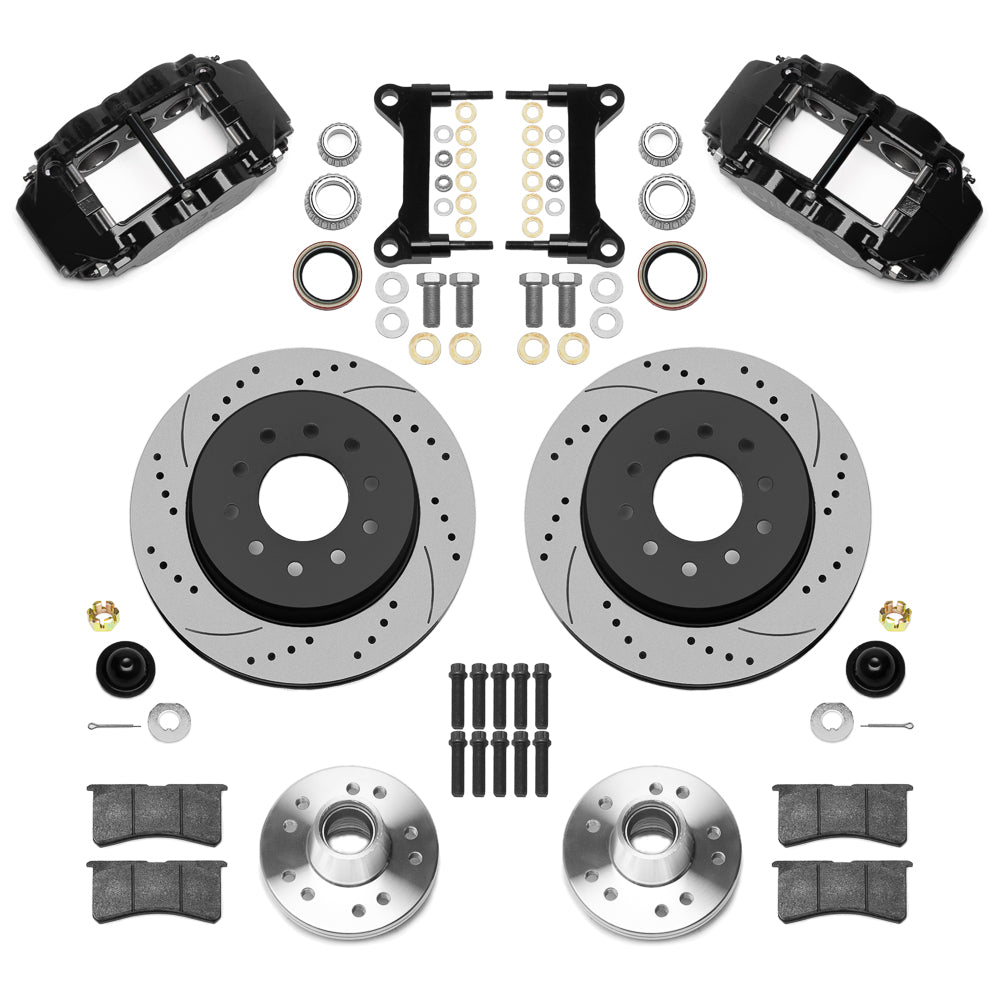

What’s Included

• 2 black Wilwood Forged Narrow Superlite 6R calipers
• 2 12.19-inch SRP drilled and slotted rotors
• 2 forged aluminum hubs
• 1 front axle set of BP-10 brake pads
• Caliper mounting brackets
• Wheel studs
• Inner and outer wheel bearings
• Grease seals
• Dust caps
• Spindle nuts and washers
• Cotter pins
• Mounting hardware
• Installation shims

Not Included

• Wilwood ProSpindles

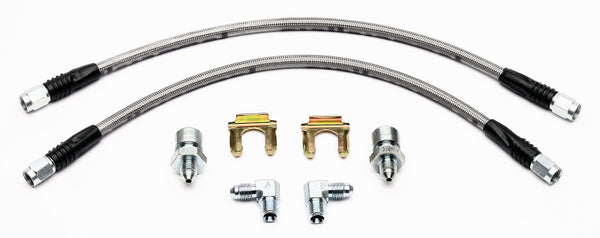

• Front flexible brake hoses
• Brake fluid
• Master cylinder
• Proportioning valve
• Upper or lower ball joints
• Tie-rod ends
• Wheels or tires
• Installation tools

Installation Note

Professional installation by someone experienced with disc-brake systems is strongly recommended.

Before installation:

• Confirm the correct Wilwood ProSpindle for the truck’s model year
• Verify the truck uses a compatible 5 x 4.75-inch or 5 x 5.00-inch wheel bolt pattern
• Confirm wheel and caliper clearance using Wilwood’s template
• Inspect ball joints, tie-rod ends, control arms, wheel bearings, and steering components

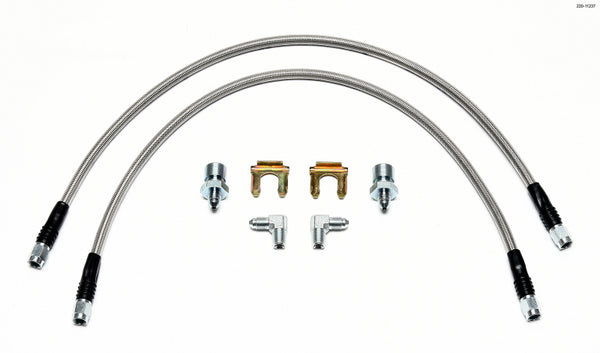

• Obtain the correct flexible brake-line kit
• Confirm all hardware achieves proper thread engagement

After installation, bleed the brake system thoroughly, check for leaks, verify pedal pressure, and complete Wilwood’s brake-testing and pad-bedding procedures before normal road use.

Do not operate the vehicle until the braking system has been fully inspected and tested.

Product Specifications

• Manufacturer: Wilwood
• Product Line: Forged Narrow Superlite 6R
• Wilwood Part Number: 140-15940-D
• Installation Position: Front
• Caliper Color: Black
• Piston Count: 6
• Rotor Diameter: 12.19 inches
• Rotor Thickness: 1.10 inches
• Rotor Style: Drilled and slotted
• Wheel Bolt Patterns: 5 x 4.75 and 5 x 5.00 inches
• Minimum Wheel Diameter: 15 inches, subject to clearance verification
• Spindle Type: Wilwood iron drop spindle
• UPC: 889545093919
• Quantity: One complete front axle brake kit
