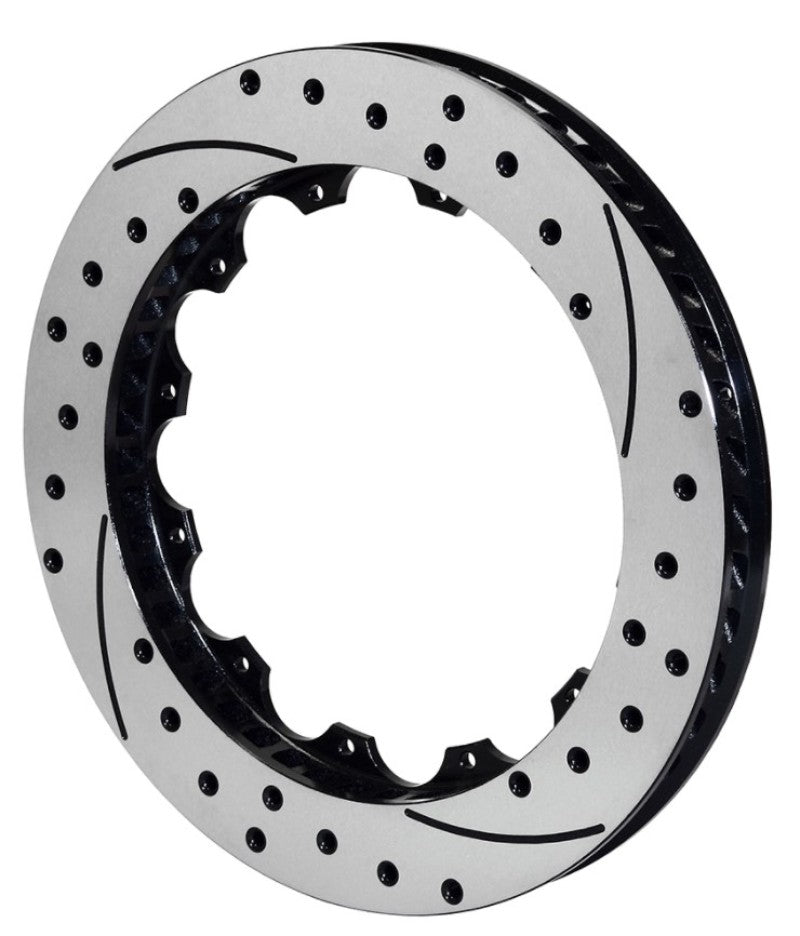

The Wilwood 160-14635-BK SRP drilled and slotted brake rotor is a right-hand directional performance rotor designed for street and moderate-temperature racing applications.
Manufactured from Wilwood Spec-37 iron, this rotor features a 15.00-inch outside diameter, 1.25-inch thickness, 72 curved vanes, and a black electro-coat finish. Wilwood's directional cross-drilled and slotted face design helps improve brake response while assisting with heat, gas, and debris evacuation at the pad-to-rotor interface.
Features
- Wilwood SRP drilled and slotted performance rotor
- Right-hand directional rotor
- Premium Spec-37 iron construction
- 72 curved-vane internal cooling design
- Directional cross-drilled and slotted friction surface
- Black electro-coat finish
- Dynamically balanced
- Designed for street and moderate-temperature racing use
Rotor Specifications
- Manufacturer: Wilwood Engineering
- Part Number: 160-14635-BK
- Rotor Type: SRP-BLK
- Rotor Style: Drilled & Slotted
- Mount Side: Right Hand
- Outside Diameter: 15.00 in.
- Rotor Width: 1.25 in.
- Material: Spec-37 Iron
- Vane Count: 72 Curved Vanes
- Rotor Bolt Circle: 12 x 8.75 in.
- Rotor Mount Hole Size: 0.251 in.
- Lug ID / Registration: 8.25 in.
- Far Side Inside Diameter: 9.65 in.
- Weight: 23.00 lbs.
- Surface Finish: Black Electro Coat
- Burnished: No
- Dynamically Balanced: Yes
- UPC: 889545081701
SRP Drilled & Slotted Design
Wilwood SRP rotors use a directional cross-drilled and face-slotted pattern intended to improve pad response and maintain a cleaner friction surface during braking. The openings and slots help evacuate gases and heat while reducing irregular pad-compound buildup that can contribute to inconsistent engagement.
Recommended Use
- Performance street braking systems
- Moderate-temperature racing applications
- Wilwood brake systems requiring a 15.00 x 1.25-inch right-hand SRP rotor
- Replacement applications specifically calling for Wilwood part number 160-14635-BK
What’s Included
- 1 Wilwood 160-14635-BK right-hand SRP drilled and slotted brake rotor
Installation
This is a directional right-hand rotor. Confirm rotor dimensions, mounting specifications, and brake-system compatibility before installation. Proper rotor and brake-pad bedding procedures should be followed after installation.
