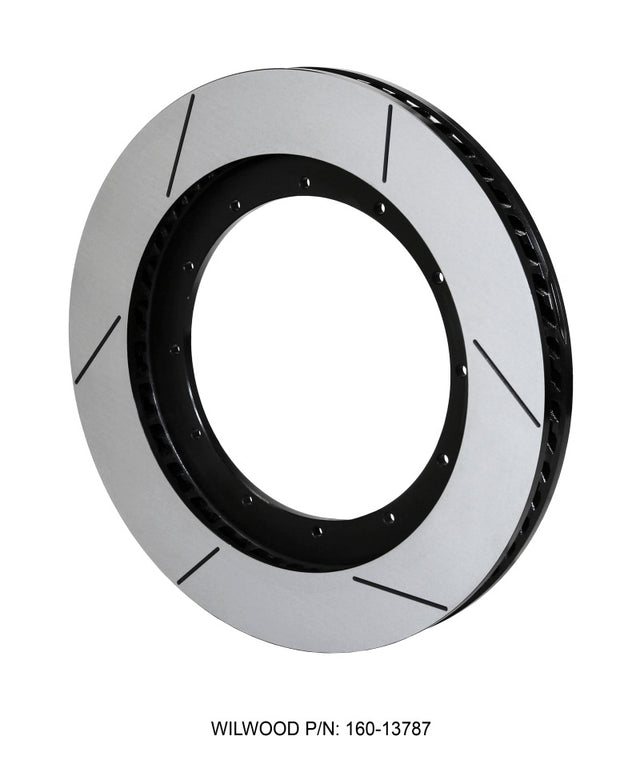

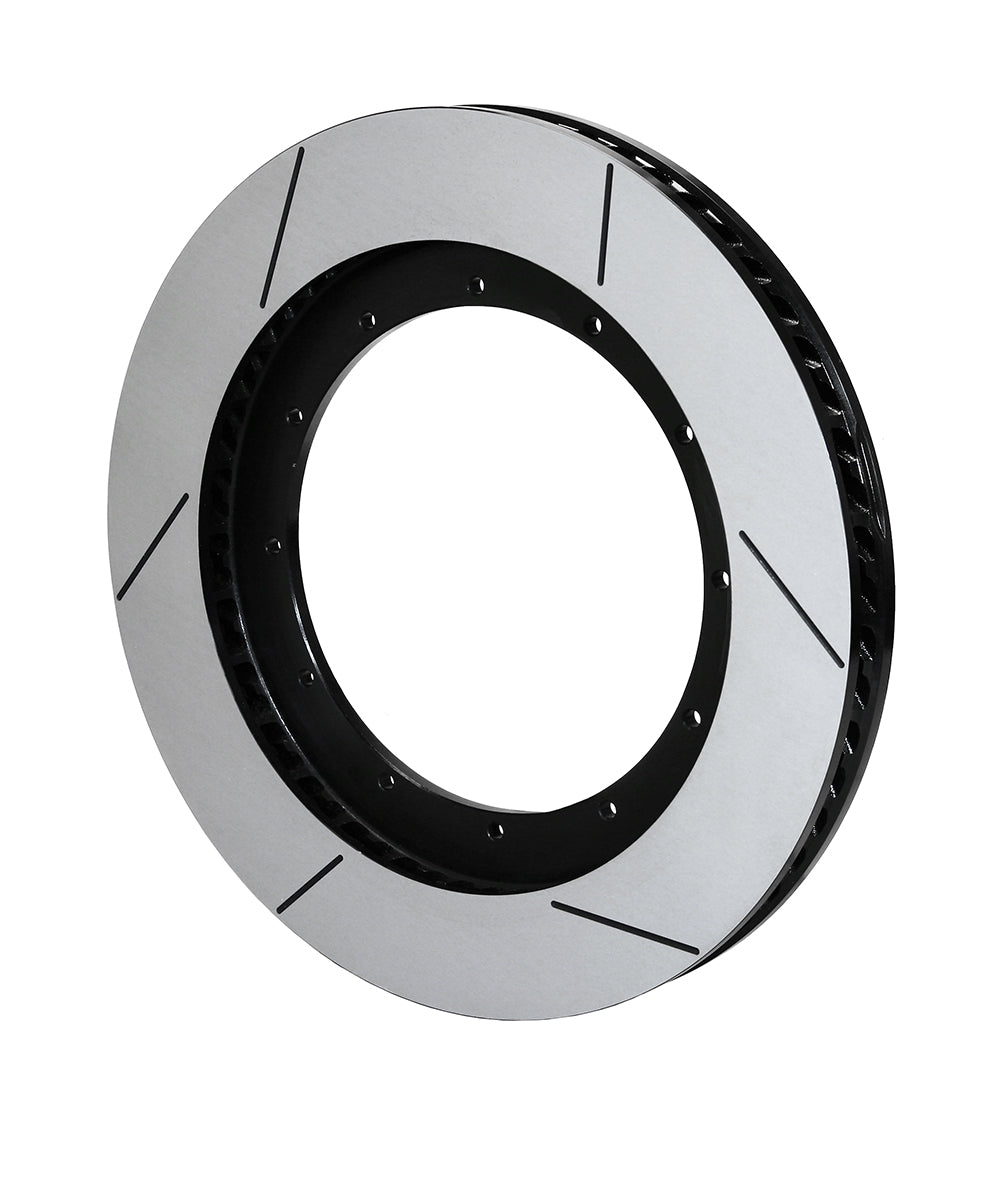

Replace or service your braking system with the Wilwood 160-13787-GTB GT 60 curved vane rotor. This right-hand GTB rotor is built from Wilwood Spec-37 iron and features a 16.00 inch diameter, 1.50 inch width, GT slotted face pattern, and black electro coat finish.
Wilwood GT / GTB 60 curved vane rotors are designed for high-temperature braking environments, with a 60 curved vane design for cooling capacity and individual dynamic balancing for smooth performance at speed. The black e-coat finish helps provide added corrosion resistance on the GTB configuration.
Product Details
- Brand: Wilwood
- Manufacturer part number: 160-13787-GTB
- Rotor type: GT 60 curved vane rotor
- Mount side: Right-hand
- Diameter: 16.00 in.
- Width: 1.50 in.
- Material: Spec-37 iron
- Vane count: 60 curved vanes
- Style: GT slotted
- Surface finish: Black electro coat

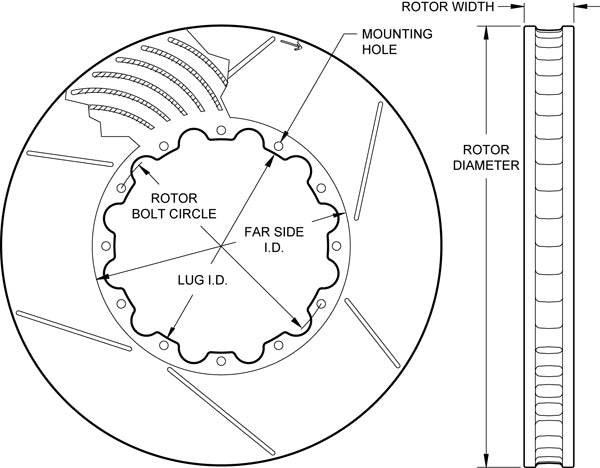

- Rotor bolt circle: 12 x 9.75 in.
- Rotor mount hole size: 0.326 in.
- Lug ID / registration: 9.03 in.
- Far side inside diameter: 11.55 in.
- Weight: 30.70 lb
- UPC: 889545076462
Fitment Note
This is a specification-based replacement rotor. Confirm rotor diameter, width, side, bolt circle, registration, hat compatibility, and brake system requirements before ordering.
