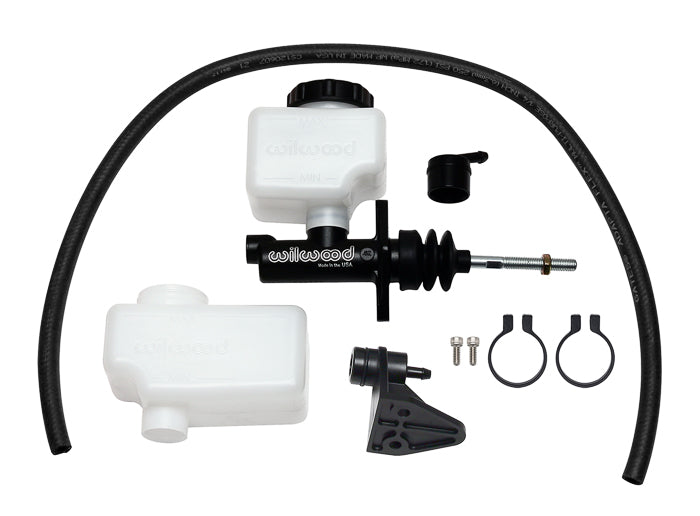

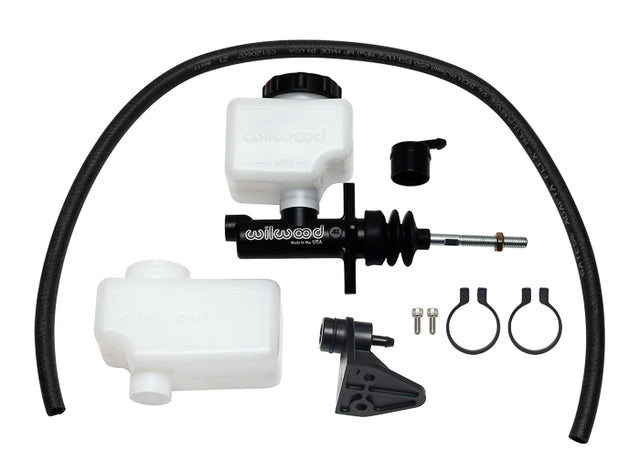

Wilwood Short Remote Master Cylinder Kit – 1.00" Bore, 3/8-24 Banjo Outlet (260-13622)
Wilwood Short Remote Master Cylinder Kit – 1.00" Bore, 3/8-24 Banjo Outlet (260-13622) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Sign up to be the first to know when it's here
Have a Question?
Customer also asked
The Wilwood Short Remote Master Cylinder Kit (260-13622) is designed for compact installations where space is limited and a remote-mounted reservoir is required. Engineered for race cars, custom builds, pedal assemblies, and retrofit applications, this master cylinder provides consistent hydraulic performance in a compact footprint.
The 1.00-inch bore delivers strong fluid volume output, suitable for many brake and clutch system configurations. Its durable aluminum body, precision internal machining, and Wilwood’s proven sealing technology ensure reliable operation under demanding conditions.
A 3/8-24 banjo outlet provides a clean, low-profile hose connection point, making this an excellent solution for tight engine bays, firewall-mounted pedals, or custom hydraulic layouts.
Key Features
Genuine Wilwood part – Master Cylinder Kit #260-13622
Short-body design allows installation in confined spaces
Remote reservoir configuration for flexible placement
1.00" bore size provides high fluid displacement for brake or clutch systems
3/8-24 banjo outlet port for low-profile hose routing
Lightweight, corrosion-resistant aluminum housing
Designed for racing, hot rods, custom fabrication, and aftermarket pedal systems
Applications
This Wilwood master cylinder is commonly used in:
Race cars and track builds
Custom brake pedal assemblies
Hydraulic clutch conversions
Kit cars and lightweight performance vehicles
Vehicles requiring remote reservoir mounting due to space limitations
(General applications only — always verify sizing and configuration for your setup.)
Specifications
Part Number: 260-13622
Bore Size: 1.00 inch
Body Style: Short Remote
Reservoir Type: Remote mount (reservoir not included)
Outlet Port: 3/8-24 banjo
Material: Aluminum / Plastic
Finish: Wilwood black anodized
Overall Length(in) 7.80"
Flange to End Length (in) 3.37"
Inlet Size (in) .87" or 11/16-20
Inlet Fit (in) 1/4" Hose
