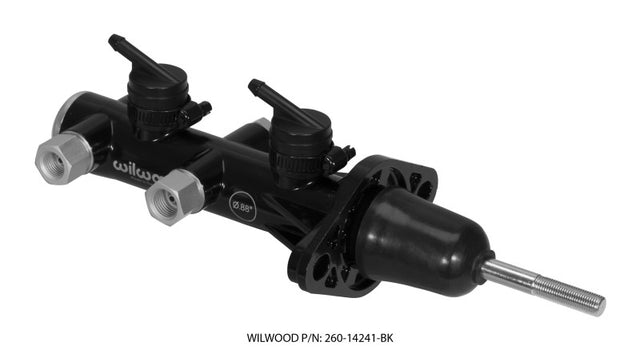

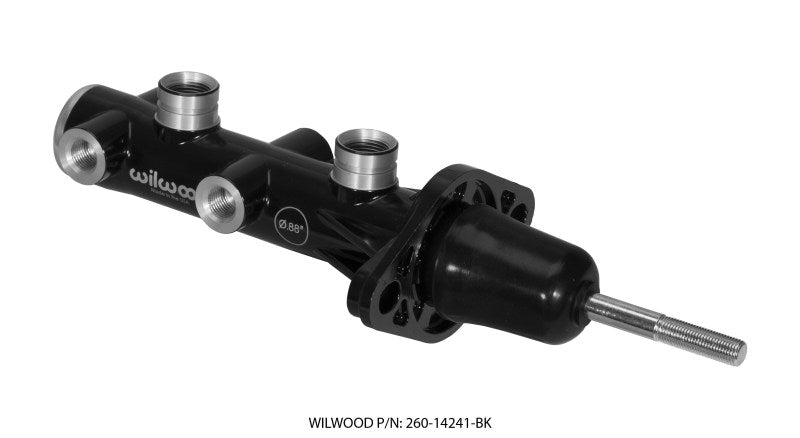

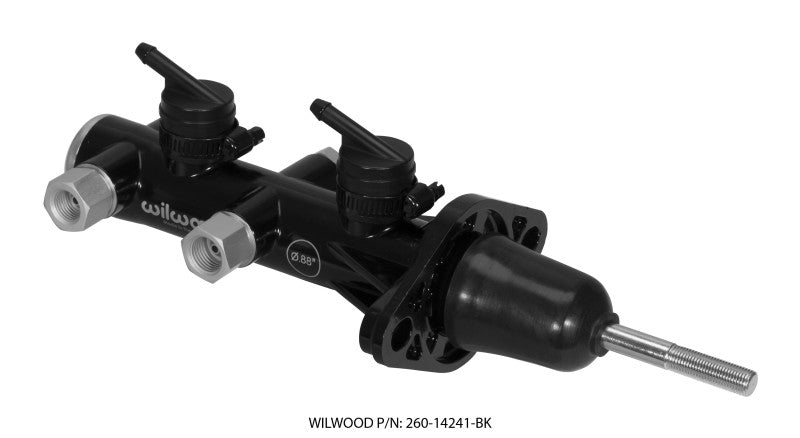

Wilwood Remote Tandem Master Cylinder with Pushrod – 7/8in Bore – Black

Upgrade a custom, performance or restoration braking system with the Wilwood 260-14241-BK Remote Tandem Master Cylinder.

Featuring a 7/8-inch bore and lightweight aluminum construction, this tandem-outlet master cylinder is designed to provide reliable hydraulic brake control while reducing weight compared with many traditional cast-iron OE-style master cylinders.

The remote-reservoir design allows the fluid reservoirs to be positioned separately from the master cylinder, making it useful for custom installations where underhood clearance, accessibility or mounting location is limited. Fluid outlet ports are located on both sides of the cylinder to provide additional brake-line routing flexibility.

A black E-coat finish provides a clean appearance and added surface protection for street, performance, hot rod, muscle car, truck and custom braking applications.

Features and Specifications

• Remote tandem brake master cylinder

• Includes pushrod

• 7/8-inch bore diameter

• Tandem hydraulic outlet design

• Two hydraulic circuits

• Lightweight aluminum and plastic construction

• Black E-coat finish

• Remote-reservoir configuration

• Fluid outlet ports located on both sides

• Designed for flexible brake-line routing

• Fits mounting-flange spacing from approximately 3.22 to 3.40 inches

• Suitable for many domestic cars and trucks from the mid-1960s and newer

• Wilwood part number: 260-14241-BK

• UPC: 889545078114

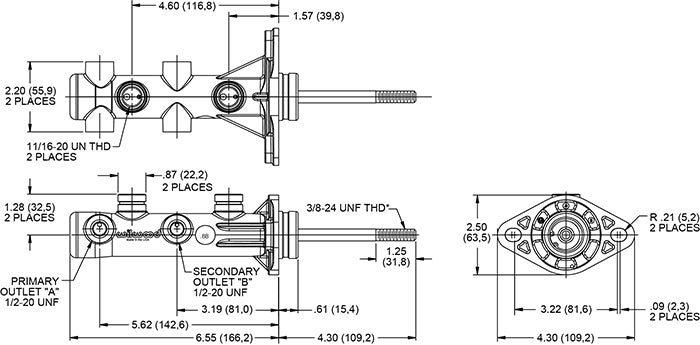

Dimensions and Port Specifications

• Bore size: 7/8 inch

• Bore area: 0.600 square inch

• Overall length: 10.76 inches

• Flange-to-end length: 6.56 inches

• Inlet connection: 1/4-inch hose

• Inlet thread: 11/16-20

• Outlet thread: 1/2-20

• Compatible outlet fittings vary by circuit and plumbing configuration

Important Application Note

This is a universal-performance master cylinder and is not a direct vehicle-specific replacement for every application.

Verify the following before ordering:

• Bore-size requirements

• Pedal ratio

• Mounting-flange spacing

• Pushrod length and geometry

• Brake-line fitting sizes

• Reservoir requirements

• Available installation clearance

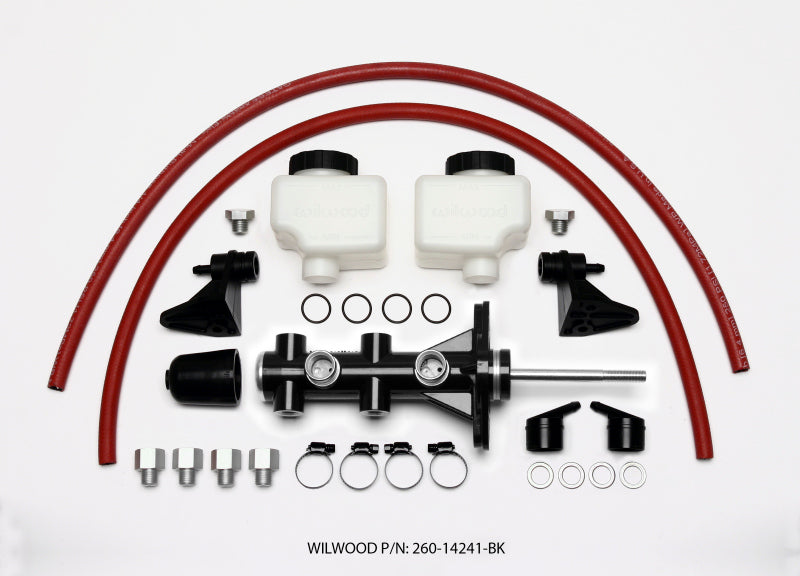

Remote reservoir assemblies, proportioning valves, brake lines, fittings and vehicle-specific mounting hardware may be required and are not included unless specifically shown or stated.

Brake-system installation should be performed by an experienced technician. The braking system must be properly bled and inspected before operating the vehicle.
