ARB Old Man Emu BP-51 2-Inch Lift Kit - 2007-2021 Toyota Tundra
Have a Question?
Not sure if this fits your vehicle? Send us a question before ordering.
Upgrade your Toyota Tundra suspension with the ARB Old Man Emu BP-51 suspension lift kit, a complete premium suspension system designed to combine improved off-road control with comfortable on-road performance.
The BP-51 system uses large-bore, position-sensitive bypass shock absorbers with remote reservoirs. Both compression and rebound damping are externally adjustable, allowing suspension performance to be tuned for vehicle setup, load and driving conditions.
This Tundra kit combines front BP-51 coilovers, rear BP-51 shocks, rear leaf springs and vehicle-specific installation components into a matched suspension package.
Features
- Complete Old Man Emu BP-51 suspension system
- Designed for 2007–2021 Toyota Tundra applications
- Approximately 2-inch suspension lift
- 51mm-bore BP-51 bypass shock technology
- Position-sensitive bypass damping
- Externally adjustable compression damping
- Externally adjustable rebound damping
- Remote-reservoir shock design
- Designed for improved on-road ride and off-road suspension control
- 6061-T6 aluminum shock bodies, reservoirs and components
- Type III hard-anodized shock components for corrosion and wear resistance
- Vehicle-specific bolt-on suspension system
- Medium-load suspension configuration
BP-51 Suspension Technology
Old Man Emu BP-51 shock absorbers combine a large 51mm bore with position-sensitive bypass technology. The bypass design provides different damping characteristics throughout shock travel, allowing the suspension to maintain ride comfort during normal driving while providing increased damping and chassis control as the suspension approaches the end of its travel.
Independent external compression and rebound adjustment provides additional tuning capability for different loads, terrain and vehicle configurations.
Fitment
Toyota Tundra
- 2007–2013 Tundra Base
- 2007–2021 Tundra Limited
- 2007–2011 and 2014–2021 Tundra SR5
- 2013–2021 Tundra Platinum
- 2014–2021 Tundra 1794 Edition
- 2014–2021 Tundra SR
- 2015–2017 and 2019–2021 Tundra TRD Pro
- 2021 Tundra Nightshade
- 2021 Tundra Trail

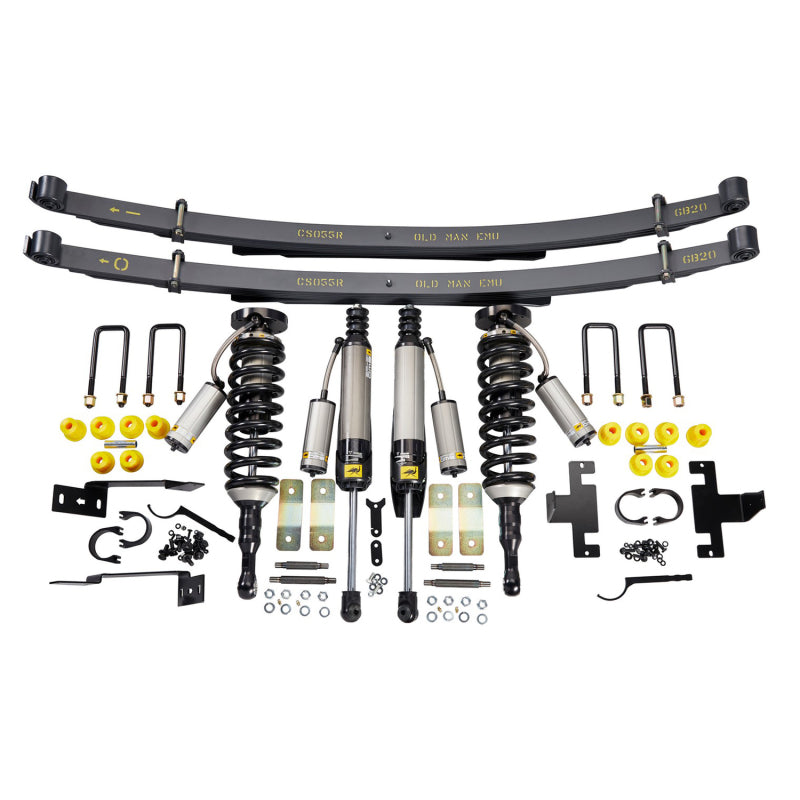

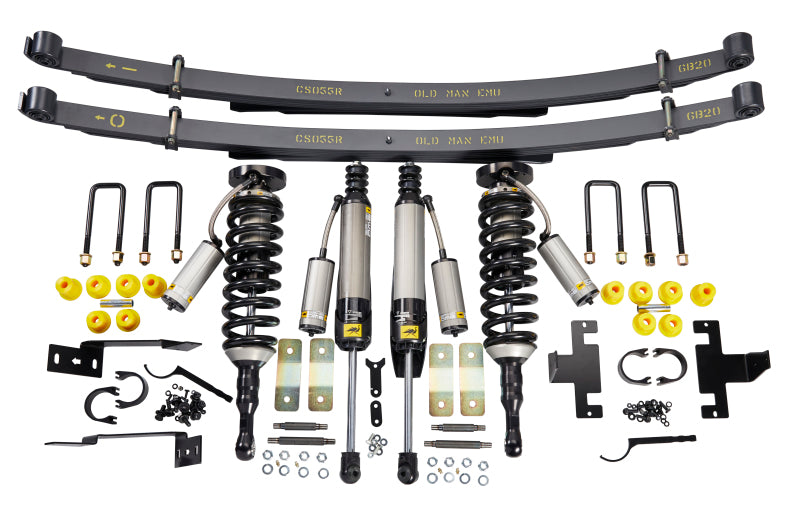

What's Included
The OMETUN57BP51 kit includes:
- 1 left front BP-51 coilover
- 1 right front BP-51 coilover
- 1 left rear BP-51 shock
- 1 right rear BP-51 shock
- 2 rear leaf springs
- Rear spring fitting kit
- Greasable shackle kit
- Spring bushings
- Front and rear BP-51 vehicle fitting kits
Installation
Professional installation is recommended. Suspension installation should be followed by inspection of component clearances and a complete wheel alignment. Always follow the current ARB/Old Man Emu installation instructions and verify the suspension configuration before installation.
