DBA 4000 Series T3 Slotted Front Brake Rotor – 2022+ Toyota Land Cruiser J300/J310 & Lexus LX600 – DBA43770S
Have a Question?
Not sure if this fits your vehicle? Send us a question before ordering.

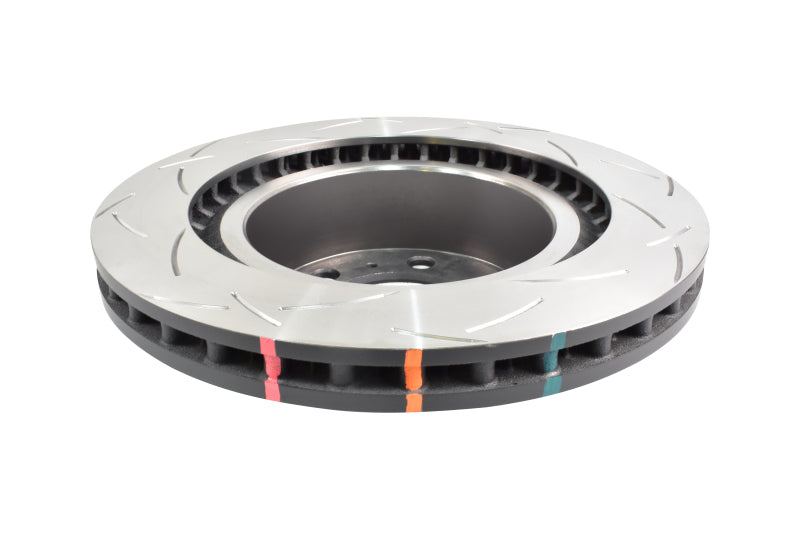

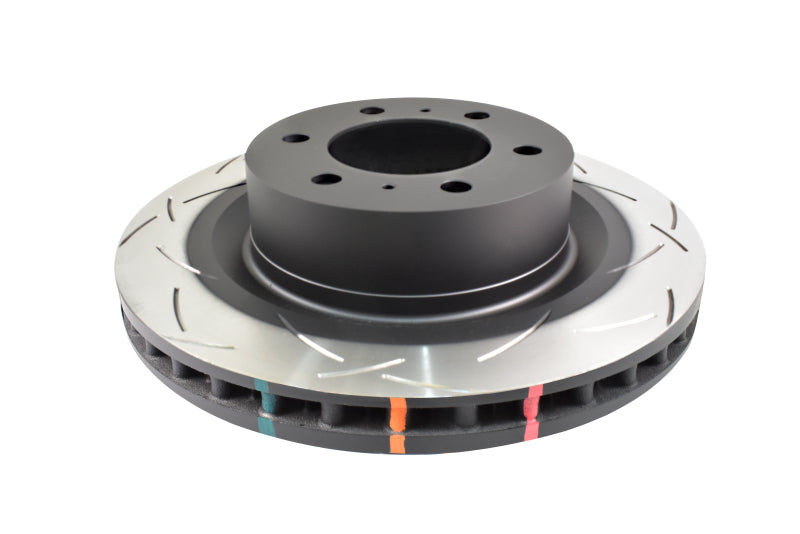

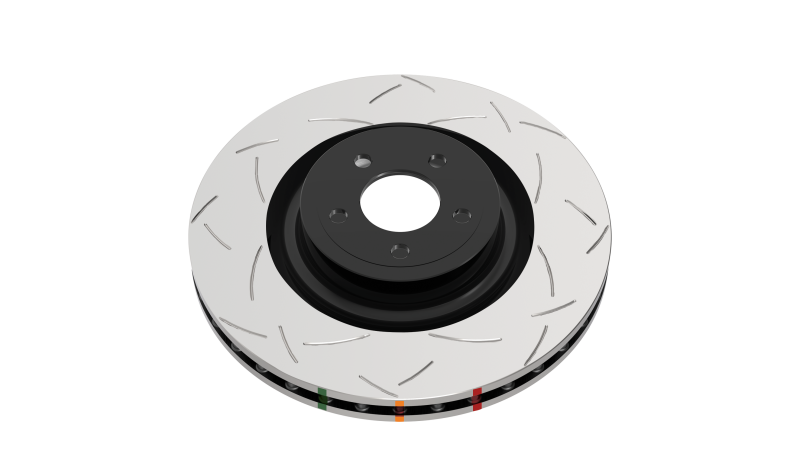

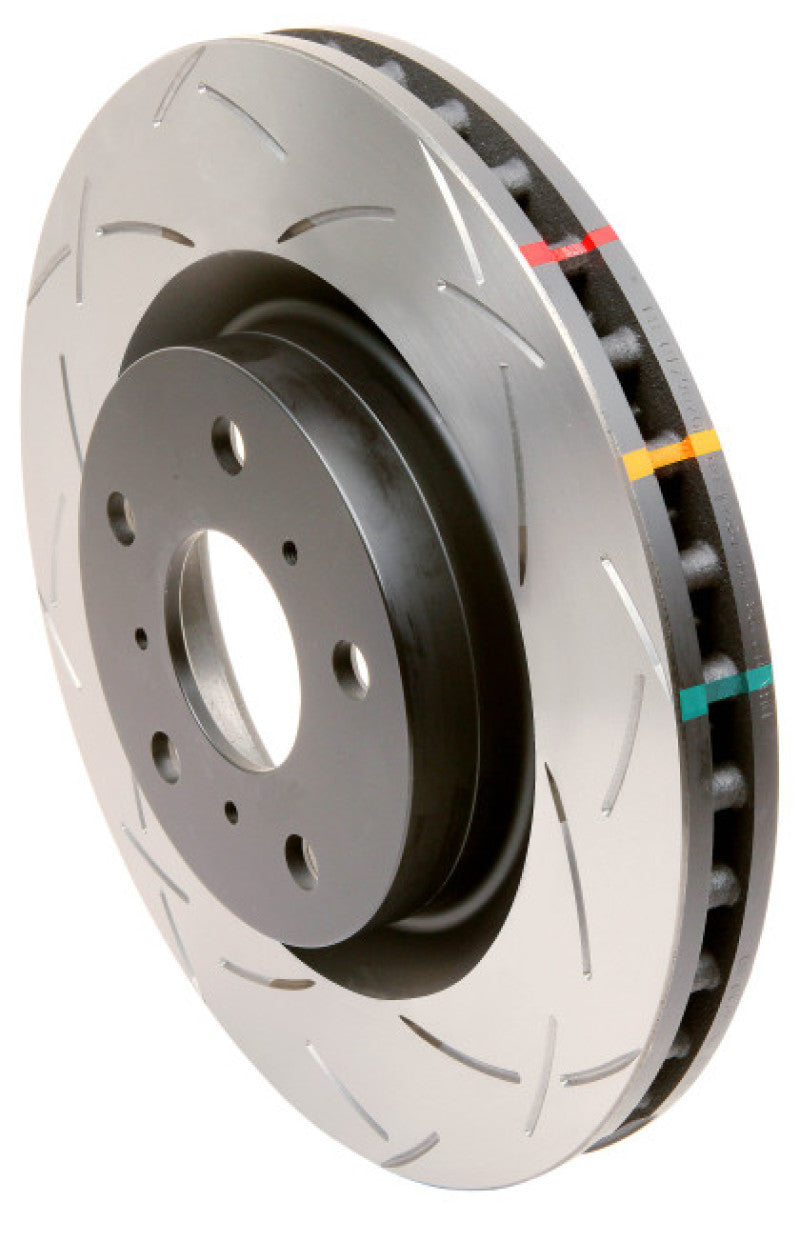

DBA 4000 Series T3 Front Brake Rotor
Upgrade the front braking performance of your Toyota Land Cruiser J300/J310 or Lexus LX600 with the DBA43770S 4000 Series T3 slotted brake rotor. Designed as a direct-replacement, single-piece performance rotor, it provides improved heat management, consistent braking response, and dependable performance for demanding street, towing, off-road, and performance-driving applications.
DBA’s T3 bi-directional slot pattern helps evacuate brake dust, gases, and debris from the pad surface while promoting consistent pad contact. The curved slot design also helps reduce vibration and supports a smooth, responsive pedal feel.
The vented high-carbon rotor uses DBA’s Kangaroo Paw internal ventilation system, featuring a series of diamond- and teardrop-shaped pillars that increase internal surface area and improve cooling compared with a conventional straight-vane design. This construction helps reduce brake fade and maintain rotor stability during repeated braking.
DBA’s temperature-monitoring markings provide a visual indication of the maximum temperature reached by the rotor, helping with brake-system evaluation during demanding use.
Product Features
- DBA 4000 Series T3 performance brake rotor
- Front-axle application
- Direct-replacement single-piece design
- Patented T3 bi-directional curved slots
- Universal slot direction eliminates separate left and right rotors
- High-carbon alloy iron construction
- Kangaroo Paw internal ventilation system
- Helps improve cooling and reduce brake fade
- Helps clear brake dust, gases, and debris
- Designed for smooth, responsive braking
- Temperature-monitoring markings
- Protective coating on non-friction surfaces
- Suitable for street performance, towing, off-road, and demanding SUV use
- Designed for compatible six-lug applications
- Sold individually
- Part number DBA43770S
Vehicle Fitment
- 2022+ Toyota Land Cruiser J300/J310
- 2022+ Lexus LX600
- Six-lug models
- Front axle
Product Specifications
- Manufacturer: DBA — Disc Brakes Australia
- Product Line: 4000 Series T3
- Part Number: DBA43770S
- Product Type: Disc brake rotor
- Position: Front
- Rotor Style: T3 slotted
- Rotor Construction: One piece
- Rotor Type: Vented
- Rotor Material: High-carbon alloy iron
- Outside Diameter: 354 mm
- Nominal Thickness: 32 mm
- Minimum / Discard Thickness: 32 mm
- Overall Height: 83.5 mm
- Center Hole Diameter: 97 mm
- Stud / Lug Holes: Six
- Quantity Required Per Vehicle: Two
- Quantity Sold: One rotor
- UPC: 9316391470744
Quantity Notice
This rotor is sold individually. Order a quantity of two to replace both front brake rotors.
Installation Note
Brake rotors should be replaced in axle pairs. Inspect the brake pads, calipers, hardware, and brake fluid during installation, and follow DBA’s recommended rotor bedding procedure.
