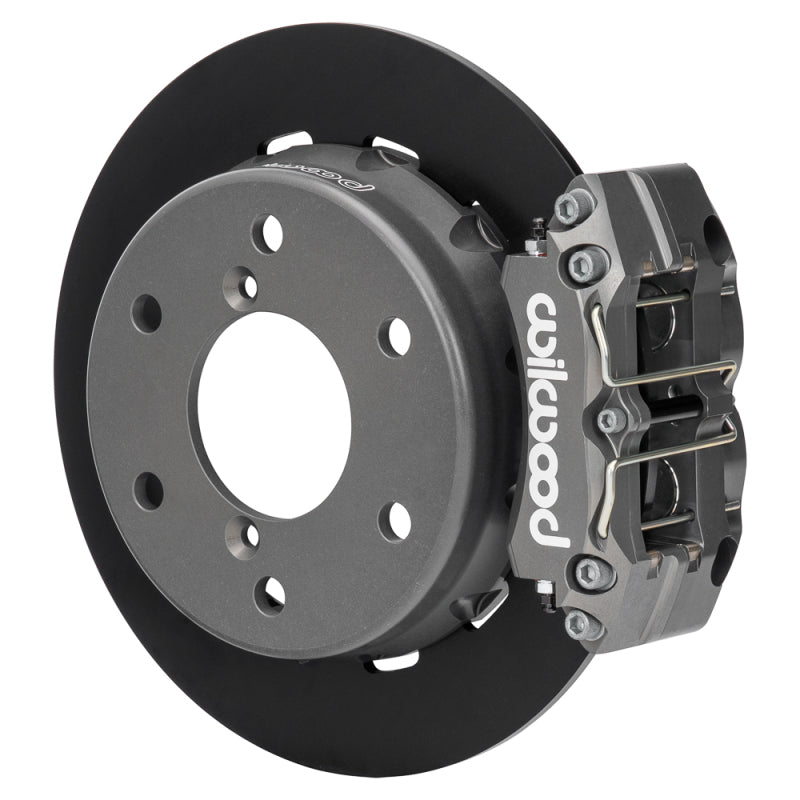

Wilwood NDPR Rear Race Brake Kit – 2024 Can-Am Maverick R – 11.60-Inch Anodized – 140-18029

Wilwood NDPR Rear Race Brake Kit for 2024 Can-Am Maverick R

Upgrade the rear braking system of your 2024 Can-Am Maverick R with the Wilwood 140-18029 NDPR Rear UTV Race Brake Kit. Developed for high-powered side-by-side racing, this rear kit combines forged four-piston radial-mount calipers, aggressive BP-28 brake pads, and dynamically mounted 11.60-inch steel rotors for increased brake torque, improved pedal response, and consistent braking over rough terrain.

The forged-aluminum NDPR calipers use staggered 1.12-inch and 1.25-inch stainless-steel pistons. Their rigid construction helps reduce caliper deflection and promotes more uniform brake-pad engagement, improving braking force, modulation, and driver feedback during demanding off-road use.

Wilwood’s race-spec configuration includes Type III hard-anodized calipers and high-friction BP-28 brake pads. The 11.60 x 0.25-inch plain-face steel rotors use Wilwood’s dynamic lug-drive mounting system, which helps reduce thermal stress and limit piston knockback caused by harsh terrain.

This kit is designed for the six-lug 2024 Can-Am Maverick R and works with the OEM rear axle configuration. Wilwood lists a 15-inch minimum wheel diameter, but actual caliper clearance depends on the wheel’s barrel, spoke profile, and offset.

Product Features

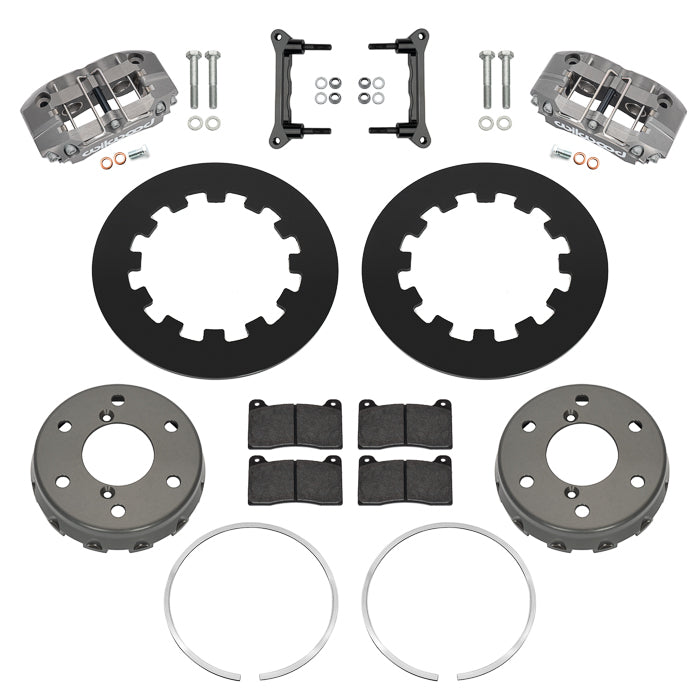

• Wilwood NDPR rear UTV race brake kit
• Designed for the six-lug 2024 Can-Am Maverick R
• Forged-aluminum four-piston NDPR calipers
• Type III hard-anodized caliper finish
• Radial-mount caliper design
• Staggered stainless-steel caliper pistons
• High-friction Wilwood BP-28 race brake pads
• 11.60-inch plain-face steel rotors
• 0.25-inch solid rotor thickness
• Dynamic lug-drive rotor mounting system
• Increased rear brake torque and clamping force
• Improved pedal feel and brake modulation
• Helps reduce rotor thermal stress
• Helps prevent piston knockback over rough terrain
• Designed for the OEM rear axle configuration
• Minimum listed wheel diameter of 15 inches
• Manufacturer part number 140-18029

Vehicle Fitment

• 2024 Can-Am Maverick R Base
• 2024 Can-Am Maverick R X Base
• 2024 Can-Am Maverick R X RS Base
  2024 Can-Am Maverick R X RS Smart-Shox Base

• Six-lug wheel configuration
• OEM rear axle configuration

This will NOT work on the older Can-Am Maverick or Maverick X3.

Caliper Specifications

• Caliper type: Wilwood NDPR
• Caliper quantity: Two
• Piston count: Four per caliper
• Piston bore 1: 1.12 inches
• Piston bore 2: 1.25 inches
• Total piston area: 1.96 square inches
• Piston material: Stainless steel
• Mounting type: Radial mount
• Finish: Type III anodized
• Brake-pad plate: 7812
• Brake-pad area: 6.36 square inches
• Brake-pad volume: 2.1 cubic inches
• Brake-pad compound: BP-28

Rotor Specifications

• Rotor type: Drilled steel rotor construction
• Rotor face style: Plain face
• Rotor material: Steel
• Rotor diameter: 11.60 inches
• Rotor thickness: 0.25 inch
• Rotor design: Solid
• Surface finish: Black electro-coat
• Burnished: No
• Dynamically balanced: No

Rotor Hat Specifications

• Hat type: Big Brake Dynamic Lug Drive, short offset
• Hat material: Aluminum
• Hat finish: Type III anodized
• Hat offset: 1.330 inches
• Bolt pattern: 6 x 5.50 inches
• Stud-hole diameter: 0.590 inch

Wheel-Clearance Notice

15-inch minimum wheel diameter, but not every 15-inch wheel will clear the brake assembly.  Wheel Clearance Diagram

Product Specifications

• Manufacturer: Wilwood
• Product line: NDPR Rear UTV Race Brake Kit
• Manufacturer part number: 140-18029
• Position: Rear
• Application: UTV racing
• Vehicle platform: 2024 Can-Am Maverick R
• Wheel configuration: Six lug
• Rear axle: OEM
• Axle offset: 0.00 inch
• Caliper finish: Type III anodized
• Rotor diameter: 11.60 inches
• Rotor thickness: 0.25 inch
• Minimum listed wheel diameter: 15 inches
• UPC: 889545122411
