Wilwood Forged DPHA 4-Piston Front Caliper Kit – Black, Honda/Acura 262mm Rotor

The black Wilwood Forged DPHA Front Caliper Kit provides compatible Honda and Acura vehicles with a direct-mount four-piston front caliper upgrade while retaining the factory-size 262 mm rotors. The calipers attach directly to the original mounting points on factory 262 mm disc-brake spindles, making this a caliper-and-pad upgrade rather than a larger-rotor conversion.

Each forged DPHA caliper uses four stainless-steel pistons to provide evenly distributed pad loading, positive braking response, corrosion resistance, and reduced heat transfer into the brake fluid. The black high-temperature powder-coated finish offers a clean, understated appearance behind factory or aftermarket wheels.

The included Wilwood BP-10 brake pads are designed for responsive street-performance braking with smooth engagement and consistent operation. The kit works with the applicable original master cylinder and ABS system and accepts the original-style brake-hose connection.

Features

• Direct-mount front caliper upgrade for compatible Honda and Acura vehicles
• Designed specifically for factory spindles originally equipped with 262 mm front rotors
• Retains the factory-size 262 mm or 10.32-inch rotor
• Forged-billet DPHA aluminum caliper bodies
• Four stainless-steel pistons per caliper
• Balanced brake-pad loading across the rotor
• Compatible with the applicable original master cylinder and ABS functions
• Accepts the original-style brake-hose connection
• Includes Wilwood BP-10 street-performance brake pads
• High-gloss black, high-temperature, brake-fluid-resistant powder-coated finish
• Wilwood part number 140-13029

Fitment

This kit requires factory disc-brake spindles originally designed for 262 mm or 10.32-inch front rotors. It will not fit 240 mm rotor spindles, even if the vehicle has been converted to use 262 mm rotors. The caliper mounting points on the 240 mm spindle are positioned differently.

Acura Integra

• 1990–1996 Acura Integra – All models
• 1997–2001 Acura Integra – All models except Type R

Does not fit the 1997–2001 Acura Integra Type R.

Acura Legend

• 1986–1990 Acura Legend – All models

Honda Accord

• 1988 Honda Accord LXi and SEi
• 1989 Honda Accord LXi and SEi

Honda Civic

• 1990–2000 Honda Civic Sedan EX
• 1992–1995 Honda Civic Sedan EX with rear disc brakes
• 1993–1995 Honda Civic Coupe EX – Automatic or manual transmission
• 1994–1995 Honda Civic Coupe EX with rear disc brakes
• 1994–1995 Honda Civic Hatchback Si
• 1996–2000 Honda Civic Coupe EX
• 1996 Honda Civic Sedan LX
• 1999–2000 Honda Civic Coupe Si
• 2001–2003 Honda Civic EX and GX
• 2002–2003 Honda Civic Si and SiR
• 2004–2005 Honda Civic EX, GX, and LX
• 2005 Honda Civic DX, HX, and VP
• 2006–2012 Honda Civic DX, EX, GX, and LX
• 2006–2015 Honda Civic Hybrid
• 2013–2015 Honda Civic HF
• 2013–2015 Honda Civic Hybrid-L
• 2013–2015 Honda Civic LX with manual transmission
• 2015 Honda Civic SE with manual transmission

Honda Fit

• 2007–2013 Honda Fit Base
• 2007–2013 Honda Fit Sport
• 2008–2013 Honda Fit DX and LX
• 2012 Honda Fit DX-A
• 2012–2013 Honda Fit EX
• 2014–2019 Honda Fit DX, EX, LX, and Sport
• 2015–2019 Honda Fit EX-L
• 2017 Honda Fit SE

Honda Insight

• 2010–2014 Honda Insight EX and LX
• 2011–2014 Honda Insight Base

Honda Prelude

• 1988 Honda Prelude Si and SE – Late-model production
• 1989–1991 Honda Prelude Si and SE

Fitment depends on the vehicle’s spindle and original brake configuration, not only its year and model. Confirm that the vehicle has factory-style disc-brake spindles intended for a 262 mm front rotor. Vehicles with spindle, hub, suspension, or brake conversions require additional fitment verification.

Caliper Specifications

• Caliper type: Forged DPHA
• Caliper part number: 120-12949-BK
• Caliper material: Forged billet aluminum
• Caliper finish: Black powder coat
• Mounting style: Lug mount
• Pistons per caliper: 4
• Piston material: Stainless steel
• Piston bore: 1.62 inches
• Total piston area: 4.12 square inches
• Brake-pad plate number: 7812
• Included pad compound: Wilwood BP-10
• Brake-pad area: 6.36 square inches
• Required rotor diameter: 262 mm or 10.32 inches
• Compatible rotor thickness: Approximately 0.83 inch
• Minimum wheel diameter: 15 inches, subject to clearance verification
• UPC: 889545018660

Wheel and Rotor Requirements

A minimum 15-inch wheel diameter is required, but this does not guarantee clearance with every 15-inch wheel. Wilwood states that the DPHA caliper clears many factory aluminum wheels, including the factory 15-inch wheel used on the 1999–2000 Civic Si EM1. Wheel-spoke profile, barrel shape, diameter, and offset must still be checked.

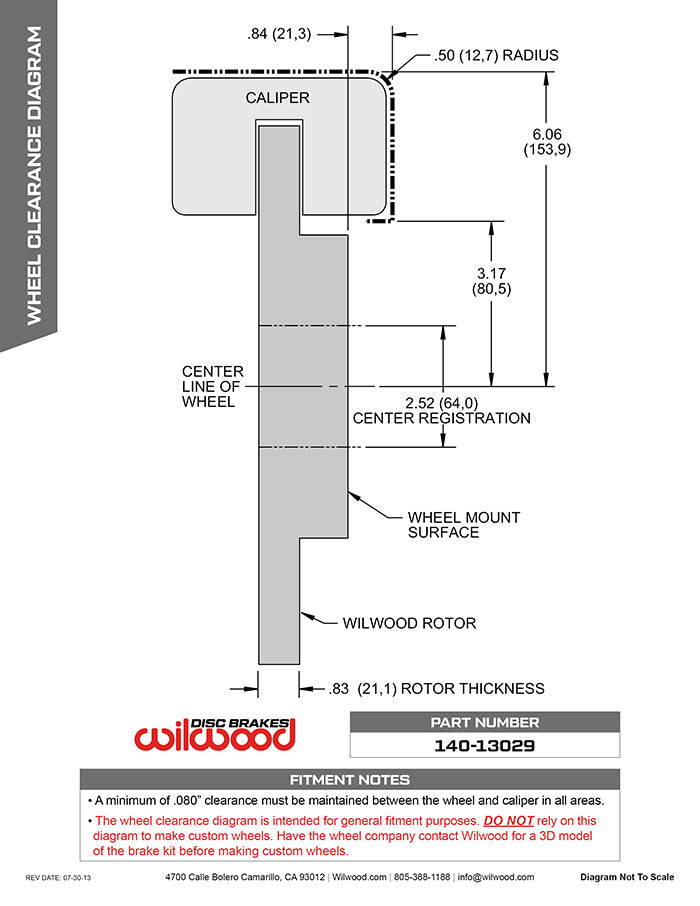

Use Wilwood’s wheel-clearance diagram to verify fitment before installation. A minimum clearance of 0.080 inch must be maintained between the caliper and wheel in all areas. Some applications may require appropriately selected wheel spacers or wheels with a different offset.

The existing 262 mm rotors may be retained only if they remain within the manufacturer’s service limits and show no excessive scoring, cracking, heat damage, or other unsafe wear. Rotors are not supplied with this kit.

Recommended Use

Recommended for compatible street and performance Honda or Acura applications where improved caliper rigidity, four-piston pad loading, consistent brake response, and a subdued black-caliper appearance are preferred without converting to larger front rotors.

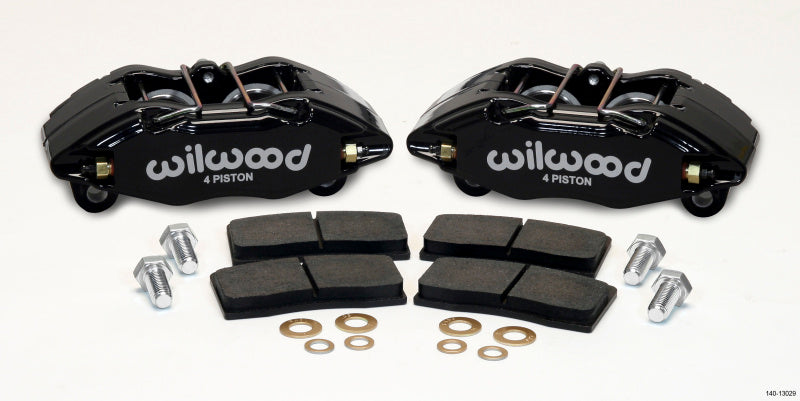

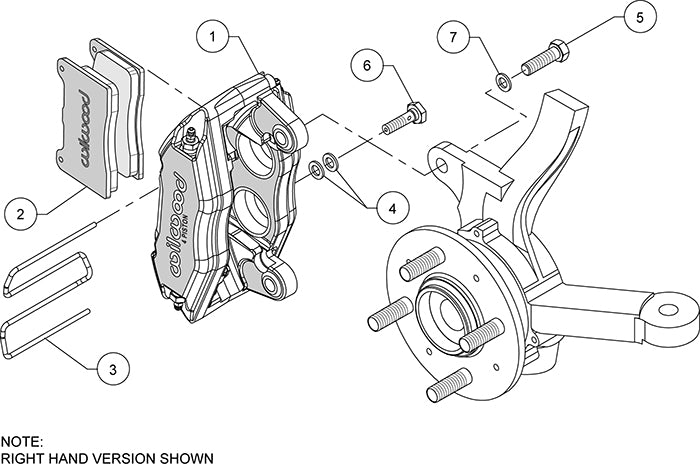

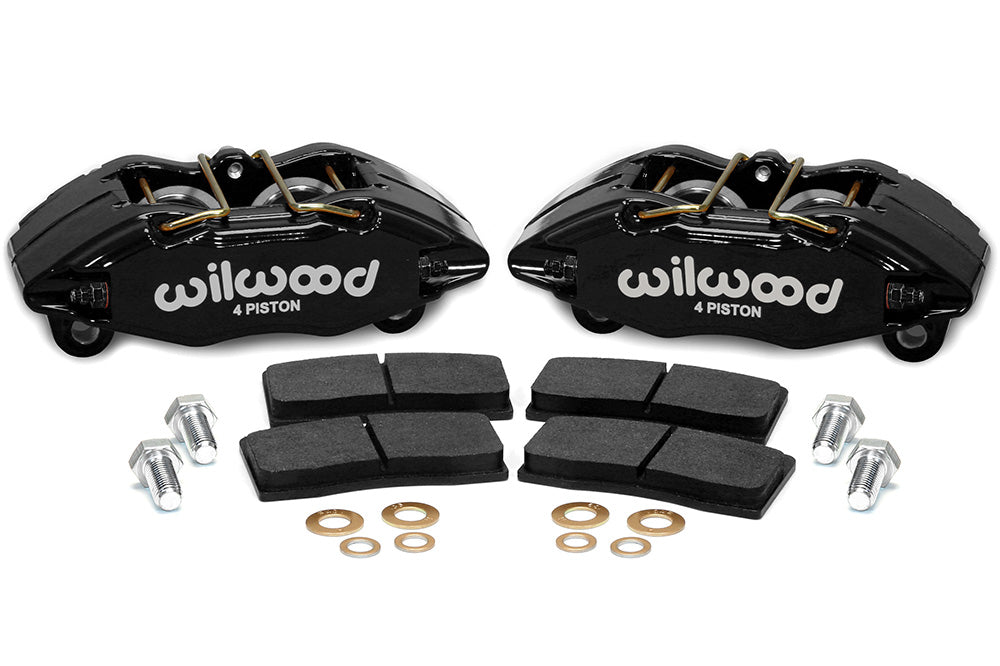

What’s Included

• 1 left-side black Wilwood forged DPHA four-piston caliper
• 1 right-side black Wilwood forged DPHA four-piston caliper
• 1 axle set of Wilwood BP-10 front brake pads
• 2 brake-pad retaining clips
• 2 M12 x 1.50 caliper mounting bolts
• 4 caliper mounting washers
• 2 M10 x 1.50 brake-hose banjo bolts
• 4 brake-hose sealing washers

Front rotors, brake fluid, wheel spacers, replacement brake hoses, and stainless-steel braided flexlines are not included.
