Wilwood Forged DPHA 4-Piston Front Caliper Kit – Red, Honda/Acura 262mm Rotor

The Wilwood Forged DPHA Front Caliper Kit upgrades compatible Honda and Acura braking systems with forged four-piston calipers while retaining the vehicle’s factory-size 262 mm front rotors. The calipers bolt directly to the original caliper mounting points on factory 262 mm disc-brake spindles, eliminating the need for separate caliper brackets or a larger-rotor conversion.

Each forged DPHA caliper uses four stainless-steel pistons to provide balanced pad loading, corrosion resistance, and reduced heat transfer into the brake fluid. The included Wilwood BP-10 brake pads provide predictable street-performance braking with smooth engagement and consistent response.

This red powder-coated kit is designed to work with the compatible original master cylinder and ABS system. It also accepts the original-style brake hose connection, although Wilwood recommends replacing older rubber hoses with suitable stainless-steel braided brake hoses.

Features

• Direct-mount front caliper upgrade for compatible Honda and Acura vehicles
• Designed for factory spindles originally equipped with 262 mm front rotors
• Retains the factory-size 262 mm rotor
• Forged-billet DPHA caliper bodies
• Four stainless-steel pistons per caliper
• Balanced brake-pad loading
• Compatible with the applicable original master cylinder and ABS functions
• Accepts the original-style brake hose connection
• Includes Wilwood BP-10 street-performance brake pads
• High-gloss red, high-temperature, brake-fluid-resistant powder-coated finish
• Wilwood part number 140-13029-R

Fitment

This kit requires factory disc-brake spindles originally designed for 262 mm or 10.32-inch front rotors. It will not fit a vehicle with 240 mm rotor spindles merely because 262 mm rotors were later installed. The 240 mm spindle has lower caliper mounting points and is not compatible with this kit.

Acura Integra

• 1990–1996 Acura Integra – All models
• 1997–2001 Acura Integra – All models except Type R

Does not fit the 1997–2001 Acura Integra Type R.

Acura Legend

• 1986–1990 Acura Legend – All models

Honda Accord

• 1988 Honda Accord LXi and SEi
• 1989 Honda Accord LXi and SEi

Honda Civic

• 1990–2000 Honda Civic Sedan EX
• 1992–1995 Honda Civic Sedan EX with rear disc brakes
• 1993–1995 Honda Civic Coupe EX – Automatic or manual transmission
• 1994–1995 Honda Civic Coupe EX with rear disc brakes
• 1994–1995 Honda Civic Hatchback Si
• 1996–2000 Honda Civic Coupe EX
• 1996 Honda Civic Sedan LX
• 1999–2000 Honda Civic Coupe Si
• 2001–2003 Honda Civic EX and GX
• 2002–2003 Honda Civic Si and SiR
• 2004–2005 Honda Civic EX, GX, and LX
• 2005 Honda Civic DX, HX, and VP
• 2006–2012 Honda Civic DX, EX, GX, and LX
• 2006–2015 Honda Civic Hybrid
• 2013–2015 Honda Civic HF
• 2013–2015 Honda Civic Hybrid-L
• 2013–2015 Honda Civic LX with manual transmission
• 2015 Honda Civic SE with manual transmission

Honda Fit

• 2007–2013 Honda Fit Base
• 2007–2013 Honda Fit Sport
• 2008–2013 Honda Fit DX and LX
• 2012 Honda Fit DX-A
• 2012–2013 Honda Fit EX
• 2014–2019 Honda Fit DX, EX, LX, and Sport
• 2015–2019 Honda Fit EX-L
• 2017 Honda Fit SE

Honda Insight

• 2010–2014 Honda Insight EX and LX
• 2011–2014 Honda Insight Base

Honda Prelude

• 1988 Honda Prelude Si and SE – Late-model production
• 1989–1991 Honda Prelude Si and SE

Fitment is determined by the factory spindle and brake configuration, not solely by vehicle year and model. Confirm that the vehicle has original-style disc-brake spindles designed for a 262 mm front rotor before ordering. Contact Wilwood for vehicles with brake, spindle, hub, or suspension conversions.

Caliper Specifications

• Caliper type: Forged DPHA
• Caliper material: Forged billet aluminum
• Caliper finish: Red powder coat
• Mounting style: Lug mount
• Pistons per caliper: 4
• Piston material: Stainless steel
• Piston bore: 1.62 inches
• Total piston area: 4.12 square inches
• Brake-pad plate number: 7812
• Included pad compound: Wilwood BP-10
• Required rotor diameter: 262 mm or 10.32 inches
• Compatible rotor thickness: Approximately 0.83 inch
• Minimum wheel diameter: 15 inches, subject to clearance verification
• UPC: 889545018677

Wheel and Rotor Requirements

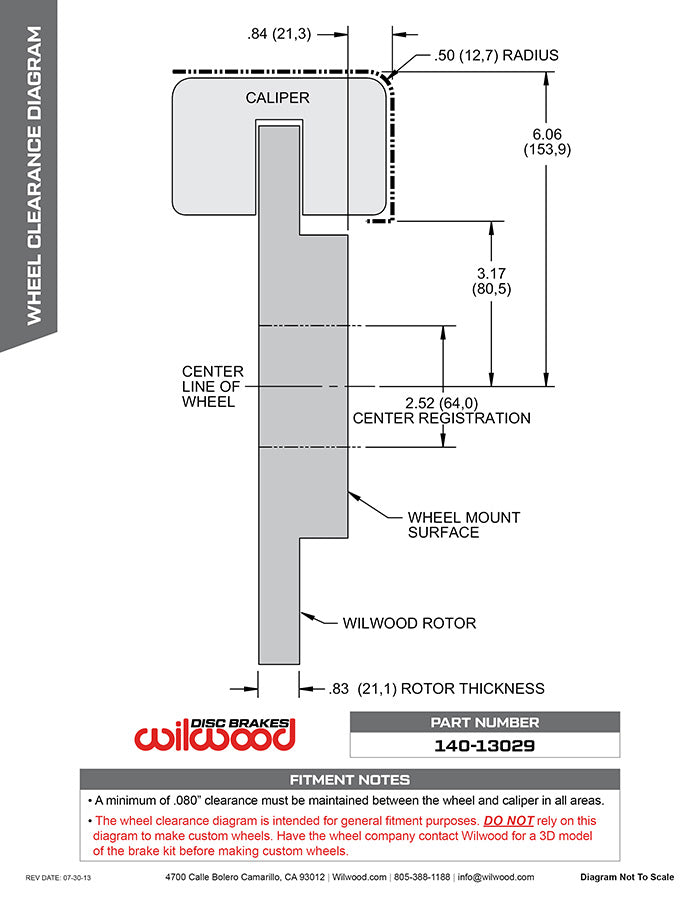

A minimum 15-inch wheel diameter is required, but the kit will not necessarily clear every factory or aftermarket 15-inch wheel. Wilwood states that it clears many factory aluminum wheels, including the 1999–2000 Civic Si EM1 15-inch wheel. Wheel spoke shape, offset, and barrel clearance must still be checked against Wilwood’s wheel-clearance diagram before installation.

A minimum clearance of 0.080 inch must be maintained between the caliper and wheel in all areas. Wheel spacers or wheels with a different offset may be required in some applications.

The existing 262 mm rotors may be reused only if they remain within the manufacturer’s service limits and are free of excessive wear, cracking, scoring, or other damage. Replacement rotors are not included.

Recommended Use

Recommended for compatible street and performance Honda or Acura applications requiring improved caliper rigidity, four-piston pad loading, more consistent brake response, and a distinctive red-caliper appearance while retaining the factory-size front rotors.

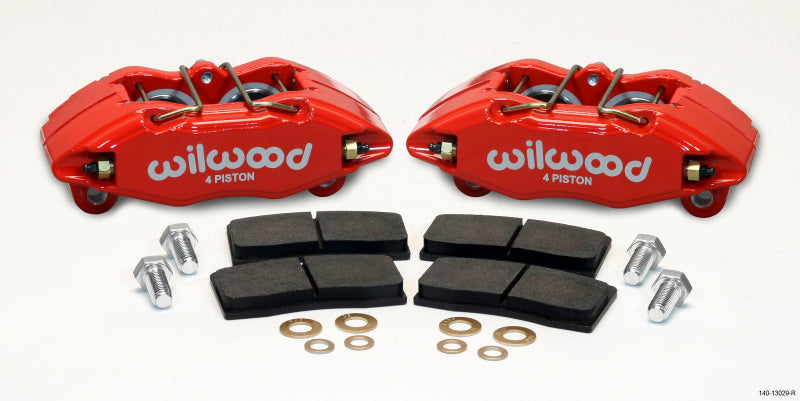

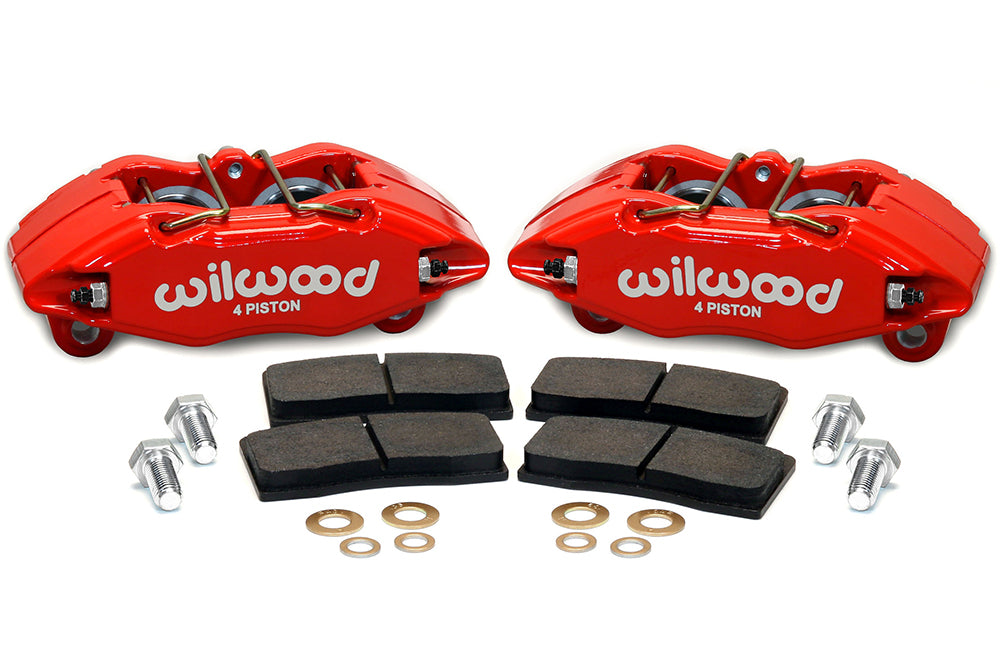

What’s Included

• 1 left-side Wilwood forged DPHA four-piston caliper
• 1 right-side Wilwood forged DPHA four-piston caliper
• 1 axle set of Wilwood BP-10 front brake pads
• 2 brake-pad retaining clips
• 2 M12 x 1.50 caliper mounting bolts
• 4 caliper mounting washers
• 2 M10 x 1.50 banjo bolts
• 4 brake-hose sealing washers

Front rotors, wheel spacers, brake fluid, replacement brake hoses, and stainless-steel braided flexlines are not included.

Installation

Professional installation by someone experienced with hydraulic disc-brake systems is strongly recommended. Inspect the factory spindles, wheel bearings, hubs, rotors, brake hoses, and mounting surfaces before assembly.

Confirm wheel clearance before removing or modifying any components. Install the calipers and brake pads according to Wilwood’s instructions, connect the brake hoses using the supplied banjo bolts and new sealing washers, and bleed the brake system completely with suitable fresh brake fluid.

After installation, verify that the brake pedal remains firm, inspect every connection for leakage, and confirm that the wheels rotate without contacting the calipers. Perform Wilwood’s low-speed brake test and prescribed brake-pad bedding procedure before normal road use. Never operate the vehicle with untested brakes.
