Wilwood Forged DPHA 4-Piston Front Caliper Kit – Competition Blue, Honda/Acura 262mm Rotor

The Competition Blue Wilwood Forged DPHA Front Caliper Kit upgrades compatible Honda and Acura braking systems with forged four-piston calipers while retaining the factory-size 262 mm front rotors. The DPHA calipers mount directly to the original mounting points on factory 262 mm disc-brake spindles, providing a straightforward caliper-and-pad upgrade without converting to larger rotors.

Each forged caliper features four stainless-steel pistons for balanced brake-pad loading, corrosion resistance, and reduced heat transfer into the brake fluid. The included Wilwood BP-10 brake pads provide smooth engagement, predictable response, and street-performance braking characteristics.

The distinctive Competition Blue powder-coated finish is designed to withstand high brake temperatures and exposure to brake fluid while providing a highly visible appearance behind the wheels. The kit works with the applicable factory master cylinder and ABS system and accepts the original-style brake-hose connection.

Features

• Direct-mount front caliper upgrade for compatible Honda and Acura vehicles
• Designed for factory spindles originally equipped with 262 mm front rotors
• Retains the factory-size 262 mm or 10.32-inch rotor
• Forged-billet DPHA aluminum caliper bodies
• Four stainless-steel pistons per caliper
• Balanced brake-pad loading across the rotor
• Compatible with the applicable factory master cylinder and ABS functions
• Accepts the original-style brake-hose connection
• Includes Wilwood BP-10 street-performance brake pads
• Competition Blue high-temperature powder-coated finish
• Wilwood part number 140-13029-CB

Fitment

This kit requires factory disc-brake spindles originally designed for 262 mm or 10.32-inch front rotors. It will not fit factory 240 mm rotor spindles, even when those spindles have been modified or converted to use 262 mm rotors. The caliper mounting-point height differs between the two spindle configurations.

Acura Integra

• 1990–1996 Acura Integra – All models
• 1997–2001 Acura Integra – All models except Type R

Does not fit the 1997–2001 Acura Integra Type R.

Acura Legend

• 1986–1990 Acura Legend – All models

Honda Accord

• 1988 Honda Accord LXi and SEi
• 1989 Honda Accord LXi and SEi

Honda Civic

• 1990–2000 Honda Civic Sedan EX
• 1992–1995 Honda Civic Sedan EX with rear disc brakes
• 1993–1995 Honda Civic Coupe EX – Automatic or manual transmission
• 1994–1995 Honda Civic Coupe EX with rear disc brakes
• 1994–1995 Honda Civic Hatchback Si
• 1996–2000 Honda Civic Coupe EX
• 1996 Honda Civic Sedan LX
• 1999–2000 Honda Civic Coupe Si
• 2001–2003 Honda Civic EX and GX
• 2002–2003 Honda Civic Si and SiR
• 2004–2005 Honda Civic EX, GX, and LX
• 2005 Honda Civic DX, HX, and VP
• 2006–2012 Honda Civic DX, EX, GX, and LX
• 2006–2015 Honda Civic Hybrid
• 2013–2015 Honda Civic HF
• 2013–2015 Honda Civic Hybrid-L
• 2013–2015 Honda Civic LX with manual transmission
• 2015 Honda Civic SE with manual transmission

Honda Fit

• 2007–2013 Honda Fit Base
• 2007–2013 Honda Fit Sport
• 2008–2013 Honda Fit DX and LX
• 2012 Honda Fit DX-A
• 2012–2013 Honda Fit EX
• 2014–2019 Honda Fit DX, EX, LX, and Sport
• 2015–2019 Honda Fit EX-L
• 2017 Honda Fit SE

Honda Insight

• 2010–2014 Honda Insight EX and LX
• 2011–2014 Honda Insight Base

Honda Prelude

• 1988 Honda Prelude Si and SE – Late-model production
• 1989–1991 Honda Prelude Si and SE

Fitment is determined by the vehicle’s original spindle and front brake configuration, not solely by its year and model. Confirm that the vehicle has factory-style disc-brake spindles designed for a 262 mm front rotor. Vehicles with spindle, hub, suspension, or brake conversions require additional verification before ordering.

Caliper Specifications

• Caliper type: Forged DPHA
• Caliper part number: 120-12949-CB
• Caliper material: Forged billet aluminum
• Caliper finish: Competition Blue powder coat
• Mounting style: Lug mount
• Pistons per caliper: 4
• Piston material: Stainless steel
• Piston bore: 1.62 inches
• Total piston area: 4.12 square inches
• Brake-pad plate number: 7812
• Included pad compound: Wilwood BP-10
• Brake-pad area: 6.36 square inches
• Brake-pad volume: 2.1 cubic inches
• Required rotor diameter: 262 mm or 10.32 inches
• Compatible rotor thickness: Approximately 0.83 inch
• Minimum wheel diameter: 15 inches, subject to clearance verification
• UPC: 889545099072

Wheel and Rotor Requirements

A minimum 15-inch wheel diameter is required, but this kit will not necessarily clear every factory or aftermarket 15-inch wheel. Wilwood states that the DPHA caliper clears many factory aluminum wheels, including the original 15-inch wheel used on the 1999–2000 Civic Si EM1.

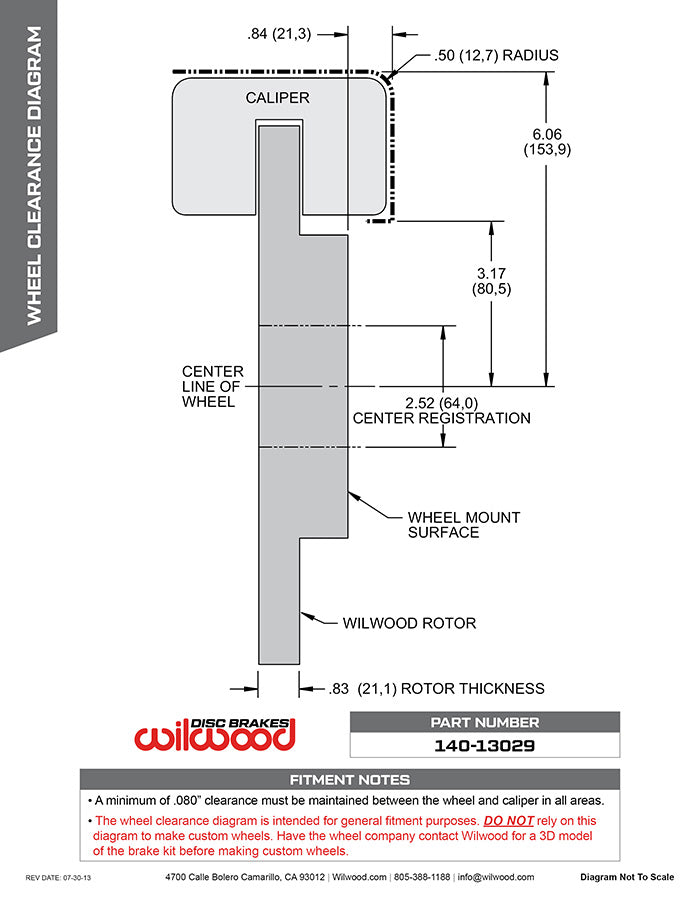

Wheel-spoke profile, barrel shape, diameter, and offset must be checked against Wilwood’s wheel-clearance diagram before installation. A minimum clearance of 0.080 inch must be maintained between the caliper and wheel in all areas. Wheel spacers or wheels with a different offset may be required in some applications.

The existing 262 mm rotors may be retained only when they remain within the manufacturer’s service limits and show no excessive scoring, cracking, heat damage, or other unsafe wear. Replacement rotors are not included.

Recommended Use

Recommended for compatible street and performance Honda or Acura applications where four-piston braking response, improved caliper rigidity, and a highly visible Competition Blue finish are desired without converting to a larger front rotor.

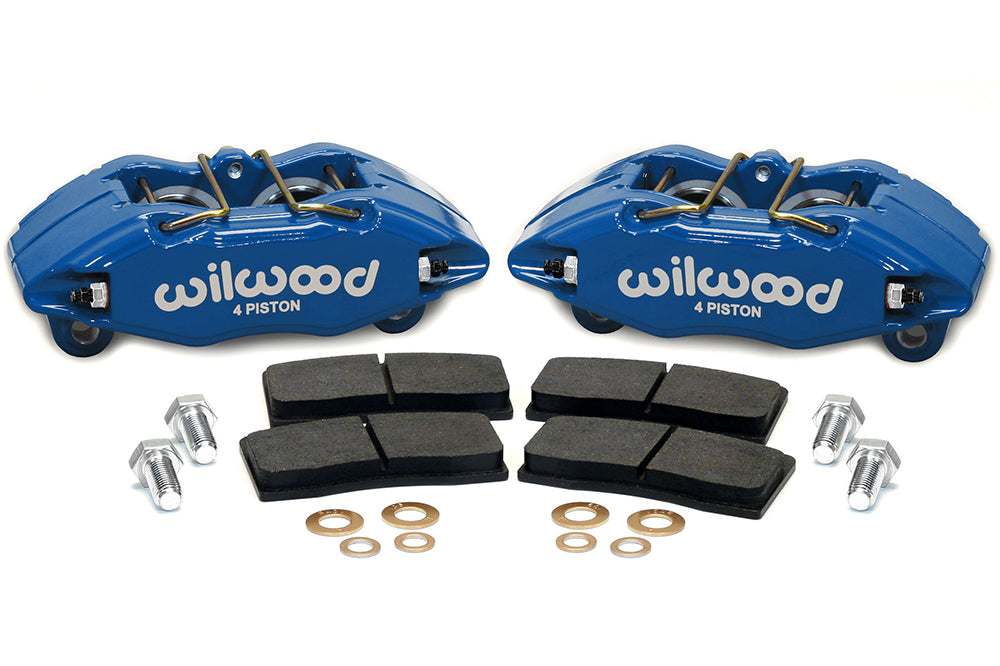

What’s Included

• 1 left-side Competition Blue Wilwood forged DPHA four-piston caliper
• 1 right-side Competition Blue Wilwood forged DPHA four-piston caliper
• 1 axle set of Wilwood BP-10 front brake pads
• 2 brake-pad retaining clips

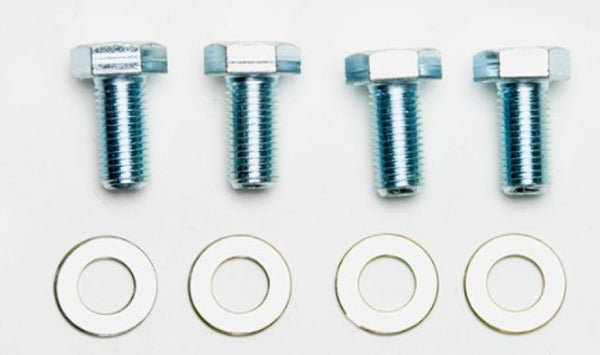

• 2 M12 x 1.50 caliper mounting bolts
• 4 caliper mounting washers
• 2 M10 x 1.50 brake-hose banjo bolts
• 4 brake-hose sealing washers

Front rotors, brake fluid, replacement brake hoses, wheel spacers, and stainless-steel braided flexlines are not included.

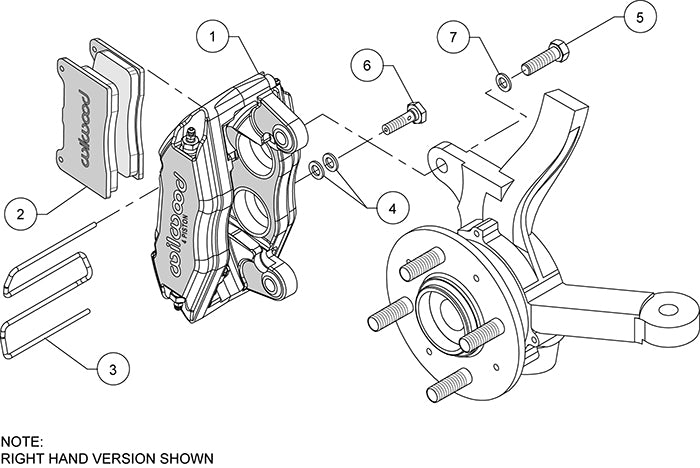

Installation

Installation should be completed by someone experienced with hydraulic disc-brake systems. Inspect the factory spindles, hubs, wheel bearings, rotors, brake hoses, and caliper mounting surfaces before assembly.

Verify wheel clearance before removing or modifying components. Install the calipers, pads, mounting hardware, brake hoses, and sealing washers according to Wilwood’s instructions. Completely bleed the brake system using fresh, compatible brake fluid.

After installation, confirm that the brake pedal remains firm, inspect all connections for leakage, and make certain the wheels rotate freely without contacting the calipers. Complete Wilwood’s prescribed low-speed safety test and brake-pad bedding procedure before normal road use. Never drive a vehicle with untested brakes.
